APC by Schneider Electric  |  SKU: SMX2200HV  |  UPC: 731304292609
Sold out
New arrival

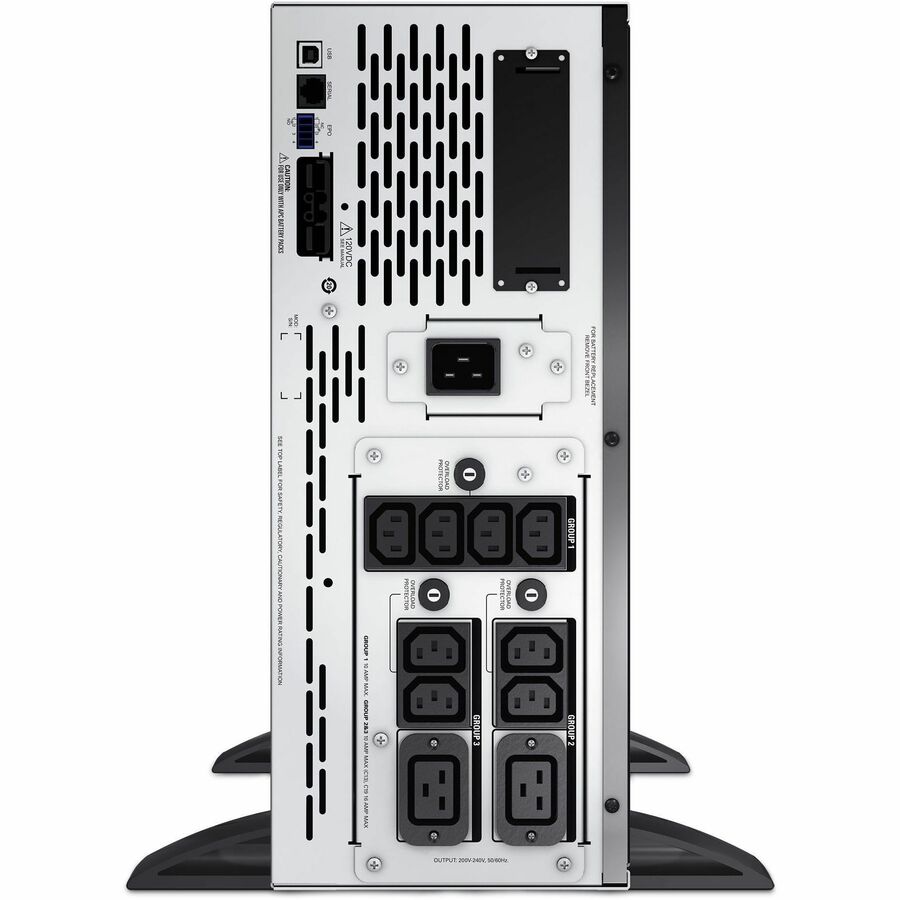

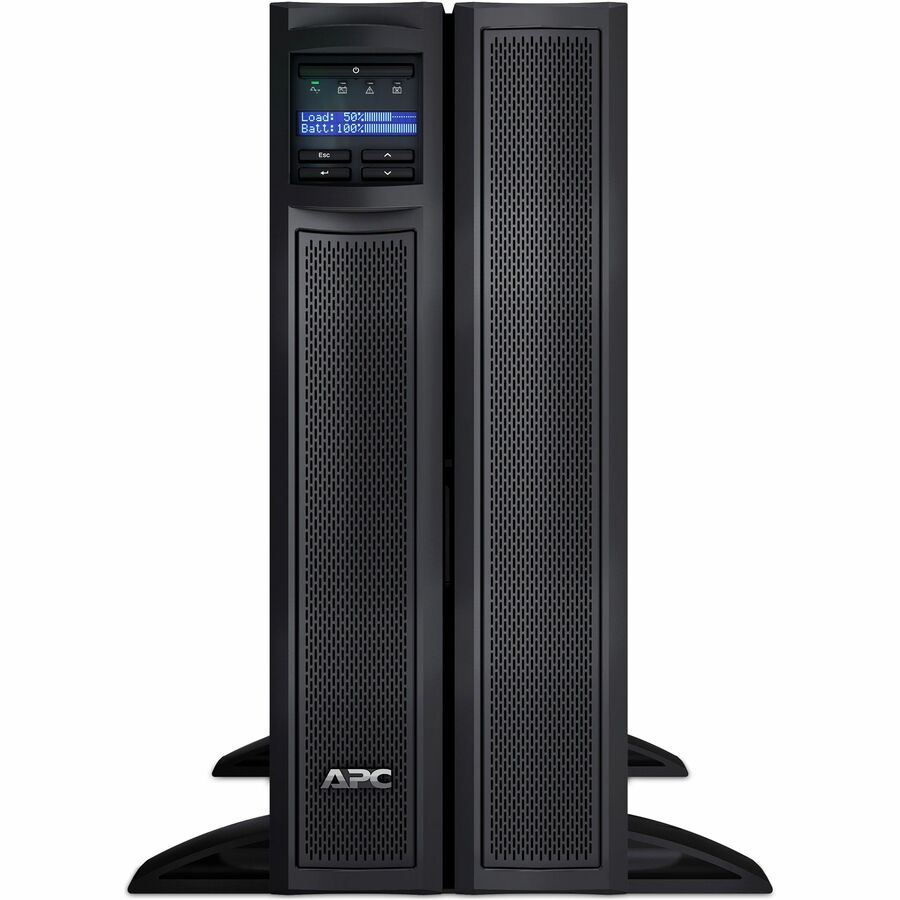

APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth — SMX2200HV

Regular price $2,600.00 USD
Shipping calculated at checkout.


Out of stock — request a quote & lead time

We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.

Description

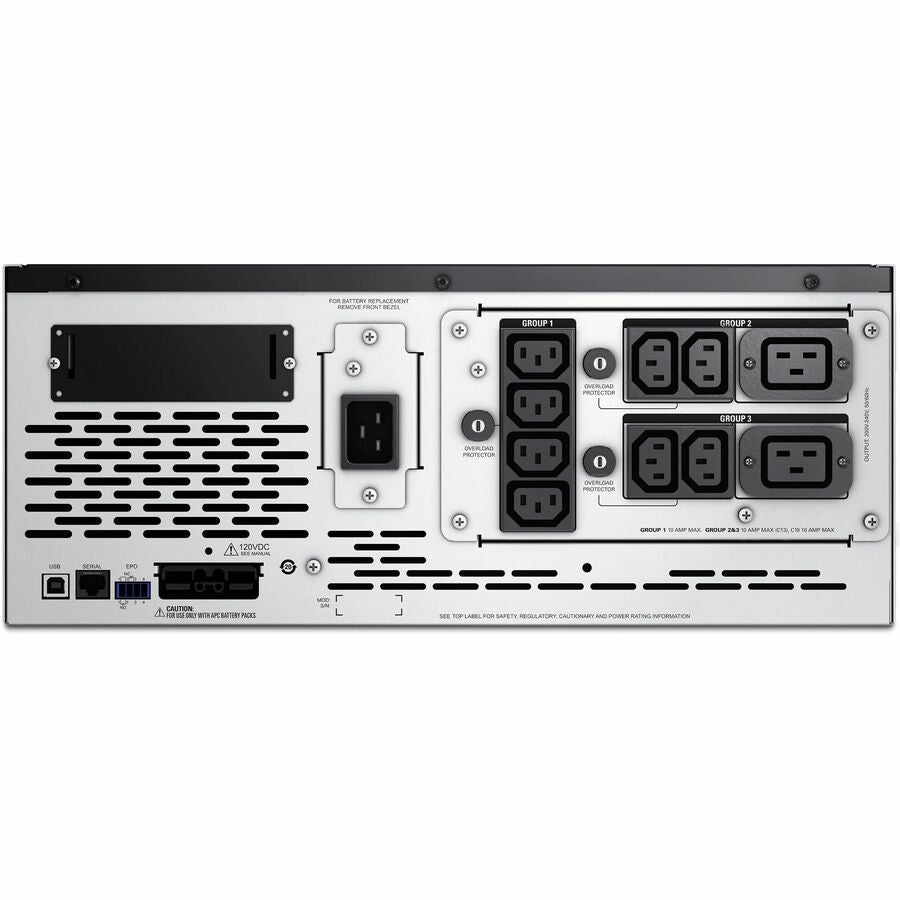

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

More from the Manufacturer

  • Ideal for servers, storage, networking & commercial applications
  • Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
  • Short depth UPS provides extra space for cable management
  • Add up to 10 external battery packs (SMX120BP)
  • User-selectable high voltage setting of 200V-240V
  • 2200VA/1980W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)

Specifications

  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack-mountable
  • Product Type
    Line-interactive UPS
  • Limited Warranty
    3 Year
  • Manufacturer
    Schneider Electric SA
  • Cord Length
    6.56 ft
  • Rack Height
    4U
  • Product Line
    Smart-UPS
  • Product Color
    Black
  • Product Series
    SMX
  • Manufacturer Website Address
    http://www.schneider-electric.com
  • Waveform Type
    Sine Wave
  • USB
    Yes
  • Typical Battery Recharge Time
    3 Hour
  • Battery Chemistry
    Lead Acid
  • Backup/Run Time (Full Load)
    10 Minute
  • Output Voltage
    208 V AC,230 V AC
  • Package Contents
    Smart-UPS X 2200VA Rack/Tower LCD 200-240V CD with software Documentation CD Rack mounting support rails Smart UPS signalling RS-232 cable USB cable User manual
  • Backup/Run Time (Half Load)
    25 Minute
  • Battery Characteristics
    Spill-proof, Maintenance-free
  • Sound Emission (A-Weighted)
    55 dB(A)
  • Surge Energy Rating
    645 J
  • Alarm
    Low Battery,Configurable Delay,On Battery
  • Thermal Dissipation
    43.96 W
  • Number of Battery & Surge Outlets
    12
  • Additional Warranty Information
    3 years repair or replace (excluding battery) and 2 years for battery
  • Receptacle Detail
    2 x IEC 320-C19,2 x IEC Jumper,8 x IEC 320-C13
  • Receptacle Type
    Schuko CEE 7/EU1-16P
  • Input Voltage
    208 V,230 V
  • Plug/Connector Type
    British BS1363A,IEC 320-C20
  • Software Included
    Powerchute Serial Edition
  • Load Capacity (Watt)
    1980 W
  • Load Capacity (VA)
    2200 VA
