APC by Schneider Electric  |  SKU: SMT750RM1U  |  UPC: 731304452461
Sold out
New arrival

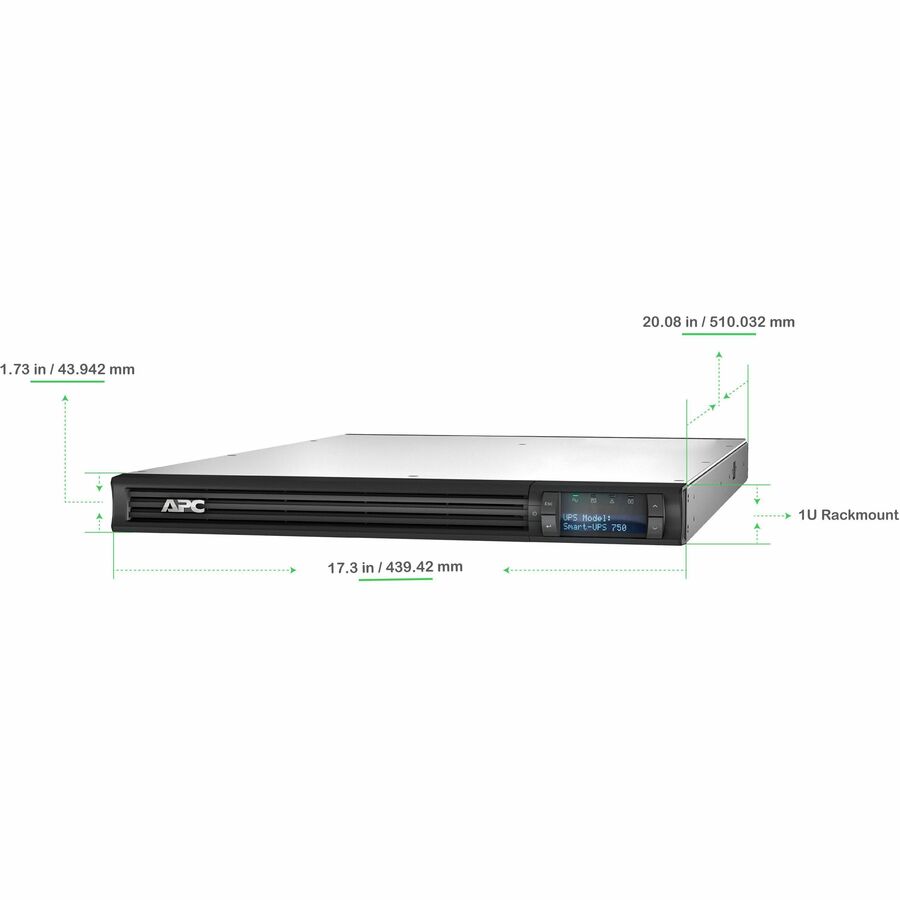

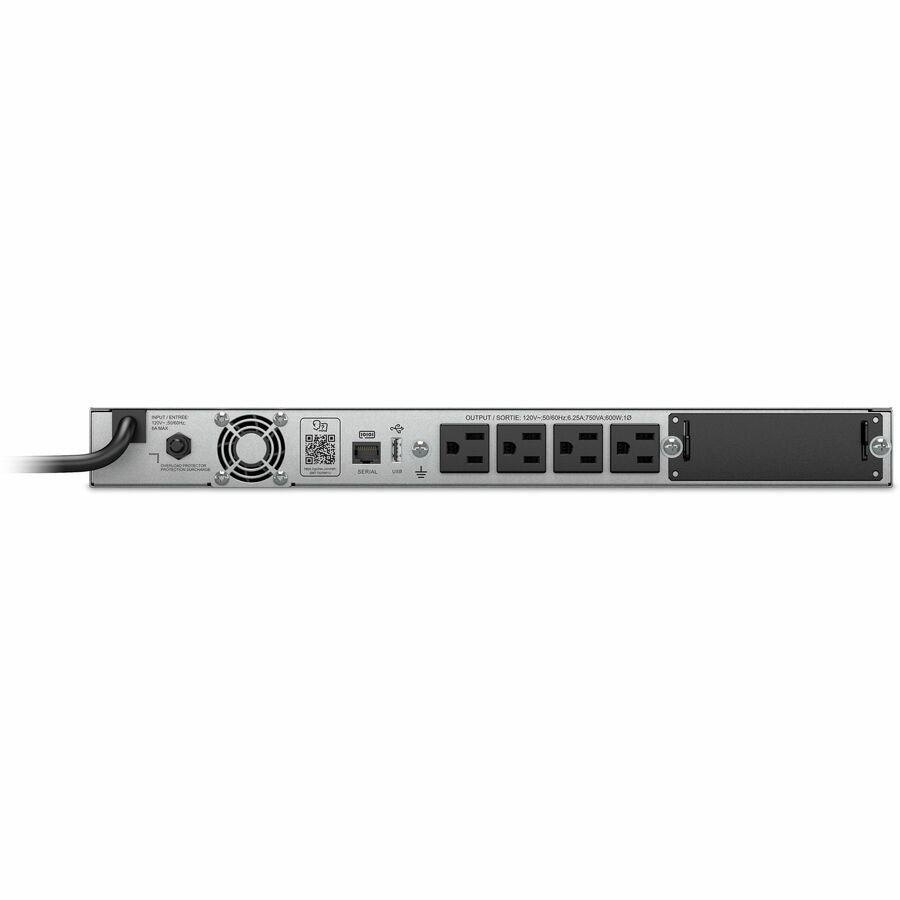

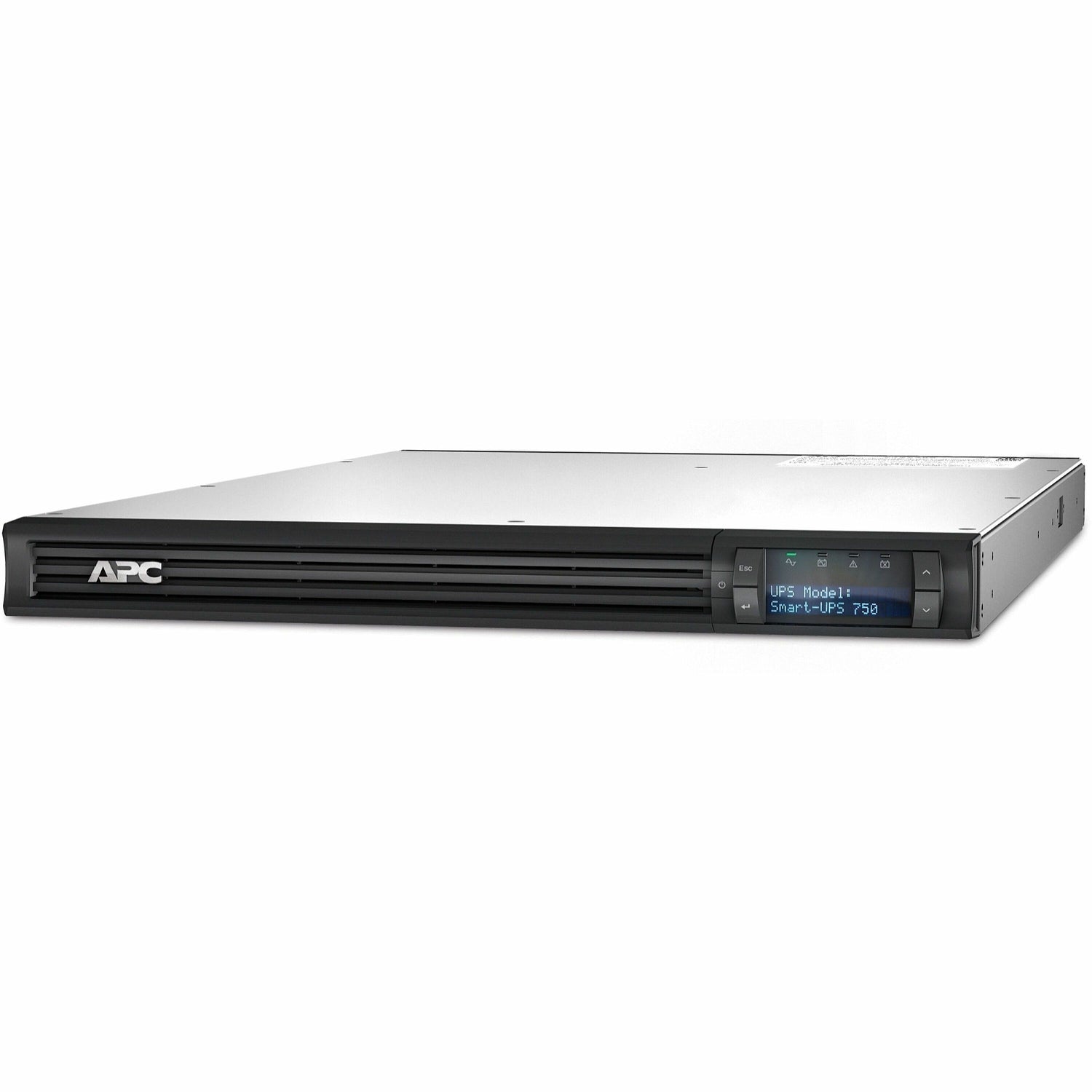

APC Smart-UPS, Line Interactive, 750 VA, LCD, Rackmount 1U, 120V, 4x NEMA 5-15R outlet, USB, AVR, Short Depth — SMT750RM1U

$849.00 USD
Shipping calculated at checkout.
Out of stock — request a quote & lead time

We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.

Description
This APC Smart-UPS is designed for small and medium businesses to maintain business uptime and continuity. The 750VA line interactive 1U rackmount provides pure sine wave power with a higher power factor to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA 5-15R outlets. It comes with PowerChute Software, which provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It provides surge protection against lightning strikes, power sags, brownouts, and surges. The SMT UPS has a 3-year warranty, and the built-in lead acid battery has a 2-year warranty. This UPS includes intelligent battery management with replacement suggestions, temperature-adjusted charging, self-tests, and battery disconnect notifications.

More from the Manufacturer

  • Up to 25% more power (higher PF) & 23% depth reduction (20 in.)
  • 1U short depth, rack-mountable design
  • LCD status display
  • AVR double boost and trim
  • USB port for communication

Specifications
  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack-mountable
  • Product Type
    Line-interactive UPS
  • Limited Warranty
    3 Year
  • Rack Height
    1U
  • Packaged Quantity
    1
  • Manufacturer
    Schneider Electric SA
  • Product Line
    Smart-UPS
  • Product Color
    Black
  • Cord Length
    8 ft
  • Product Series
    SMT
  • Manufacturer Website Address
    http://www.schneider-electric.com
  • Output Voltage
    120 V AC
  • Waveform Type
    Sine Wave
  • Plug/Connector Type
    NEMA 5-15P
  • Receptacle Detail
    4 x NEMA 5-15R
  • Battery Chemistry
    Lead Acid
  • Transfer Time
    8 ms
  • AVR
    Yes
  • Load Capacity (Watt)
    600 W
  • Typical Battery Recharge Time
    5 Hour
  • Replaceable Battery
    Yes
  • USB
    No
  • Surge Energy Rating
    540 J
  • Input Voltage
    120 V
  • Receptacle Type
    NEMA 5-15P
  • Display
    LCD
  • Maximum Operating Temperature
    104°F (40°C)
  • Battery Life
    5 Year
  • Output Frequency
    60 Hz
  • Alarm
    On Battery,Low Battery,Configurable Delay
  • Input Frequency
    60 Hz
  • Maximum Operating Elevation
    10000 ft
  • Storage Temperature
    5°F (-15°C) - 113°F (45°C)
  • Maximum Storage Elevation
    50000 ft
  • Storage Relative Humidity
    95%
  • Sound Emission (A-Weighted)
    46 dB(A)
  • Thermal Dissipation
    25.79 W
  • Battery Energy
    604.8 kJ
  • Additional Warranty Information
    3 years repair or replace (excluding battery) and 2 years for battery
  • Application/Usage
    Business,Server,Virtual Machine,Hyperconverged Infrastructure (HCI)
  • Package Contents
    Smart-UPS SMT 750VA Rack-mountable UPS User Manual
  • Backup/Run Time (Full Load)
    4.11 Minute
  • Backup/Run Time (Half Load)
    14.93 Minute
  • Input Current
    6.25 A
  • Load Capacity (VA)
    750 VA
