APC by Schneider Electric  |  SKU: SCL500RM1UC  |  UPC: 731304344551
New arrival

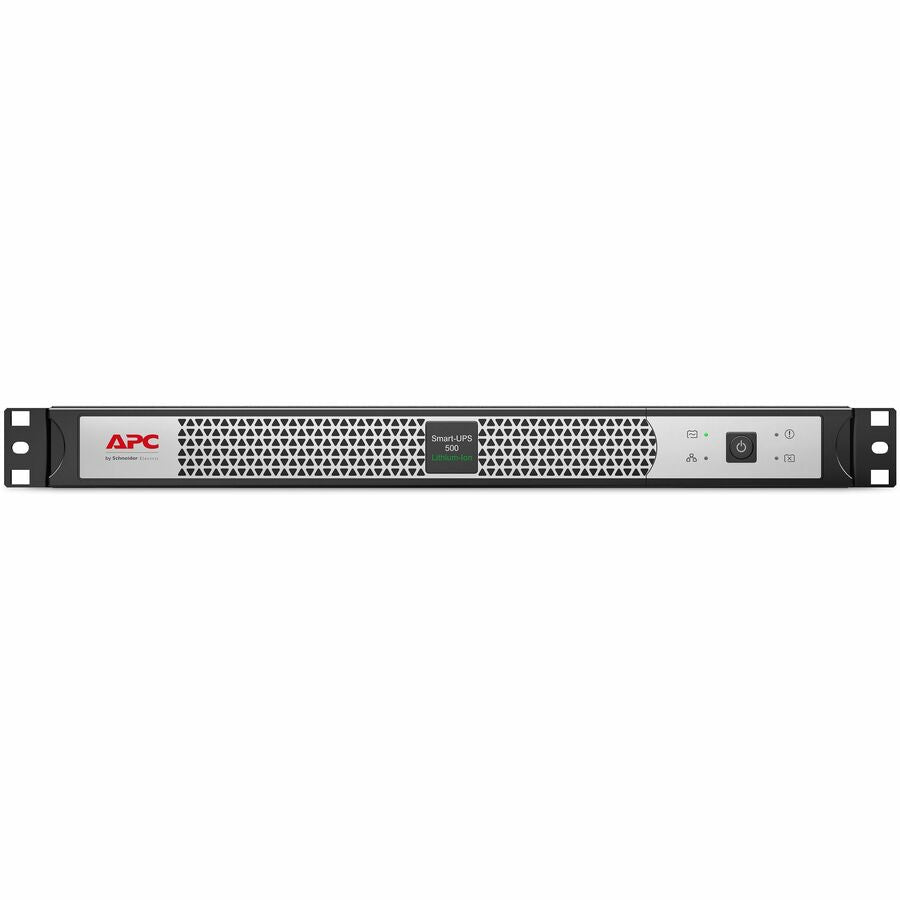

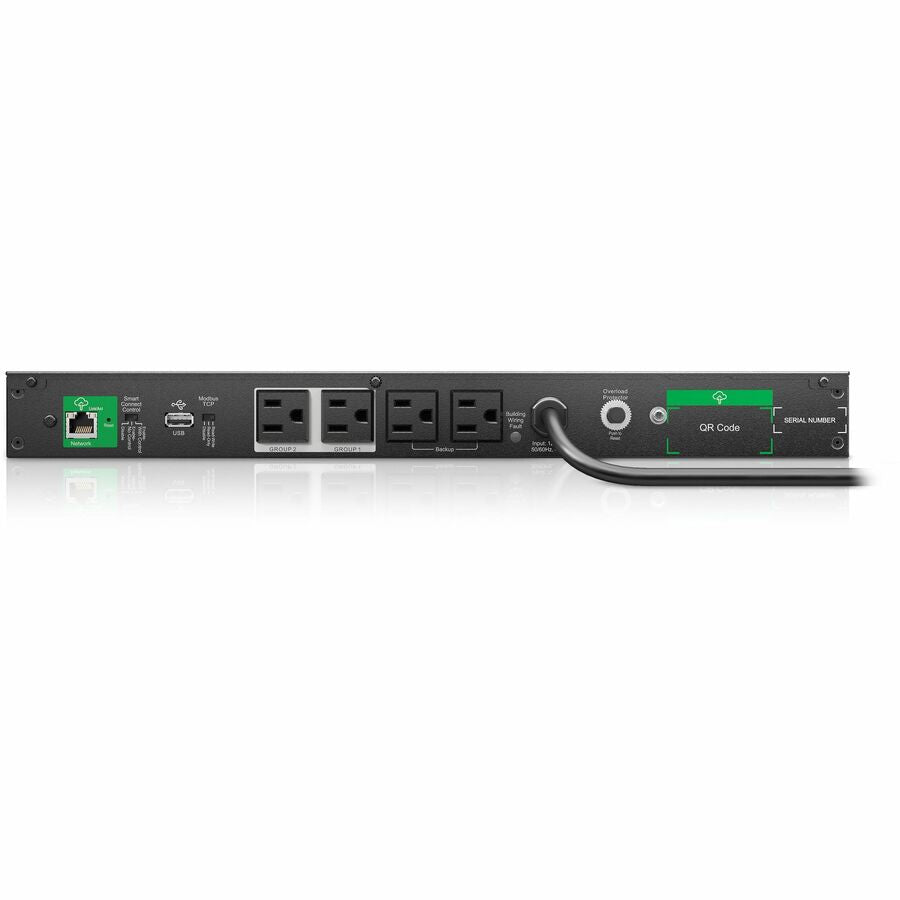

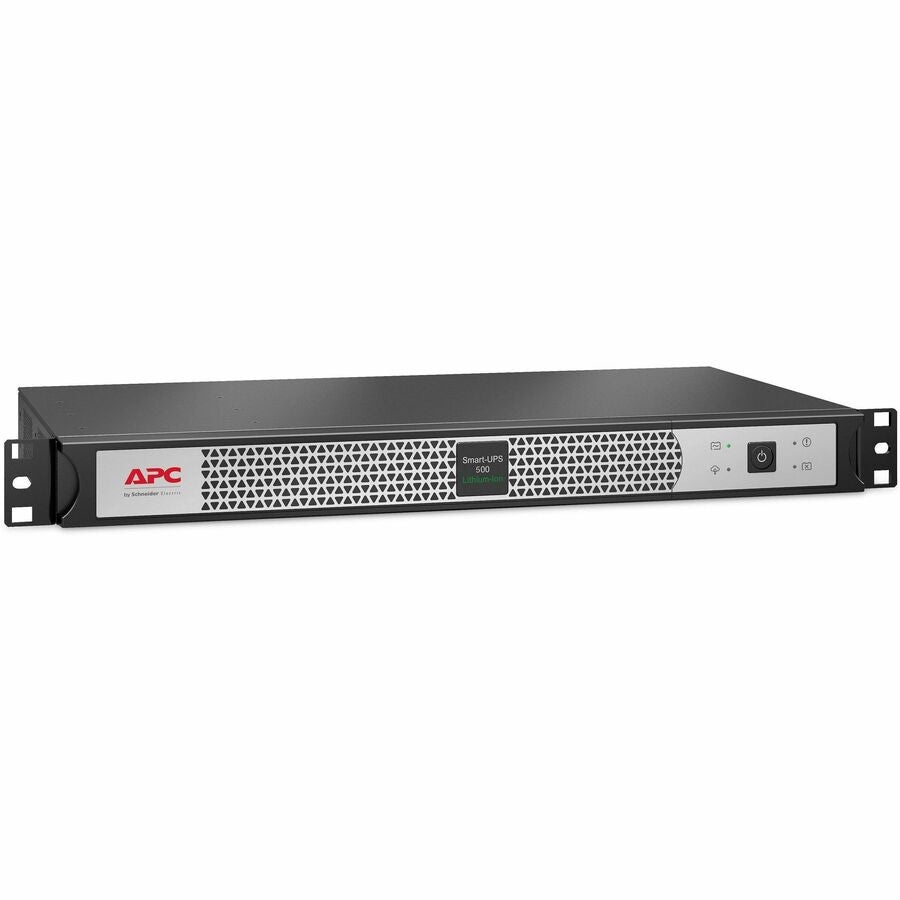

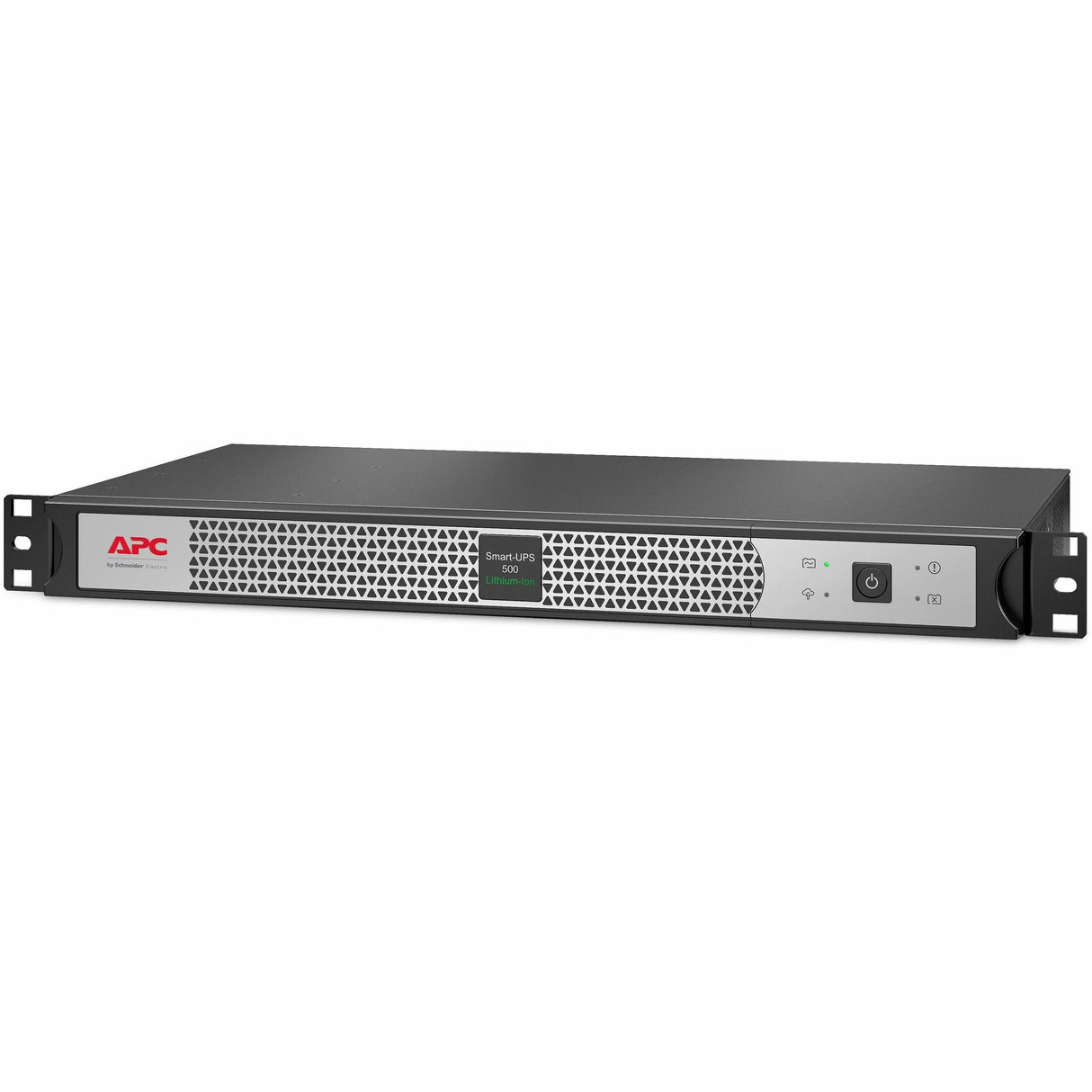

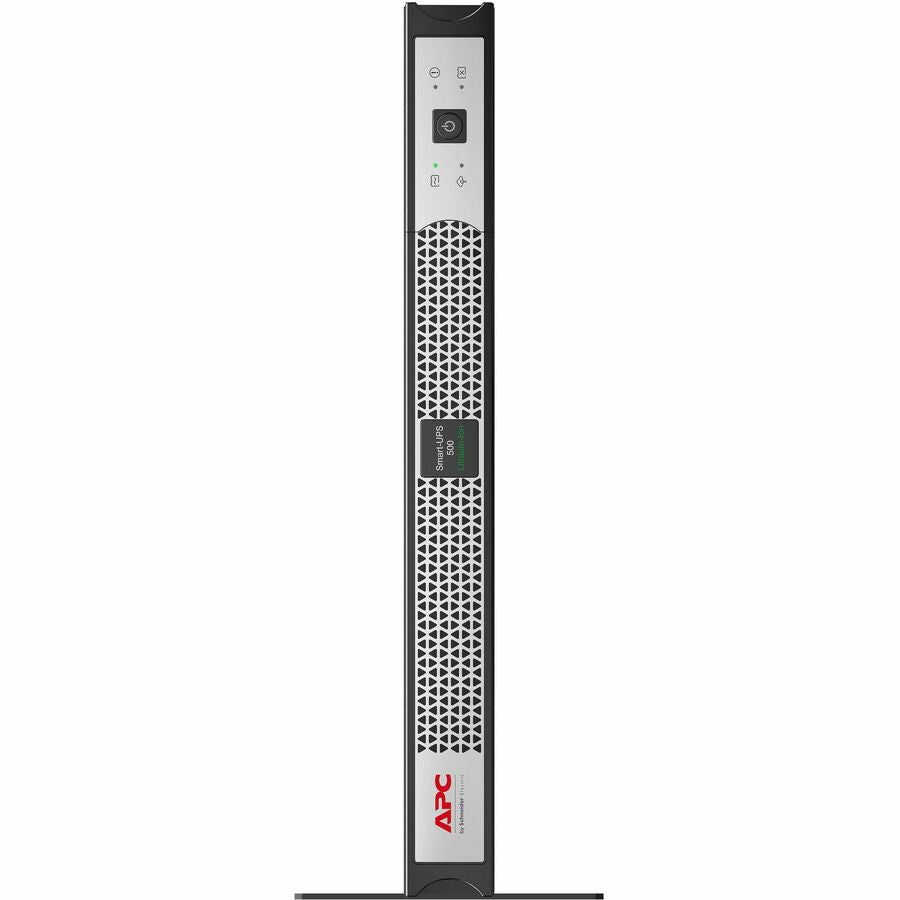

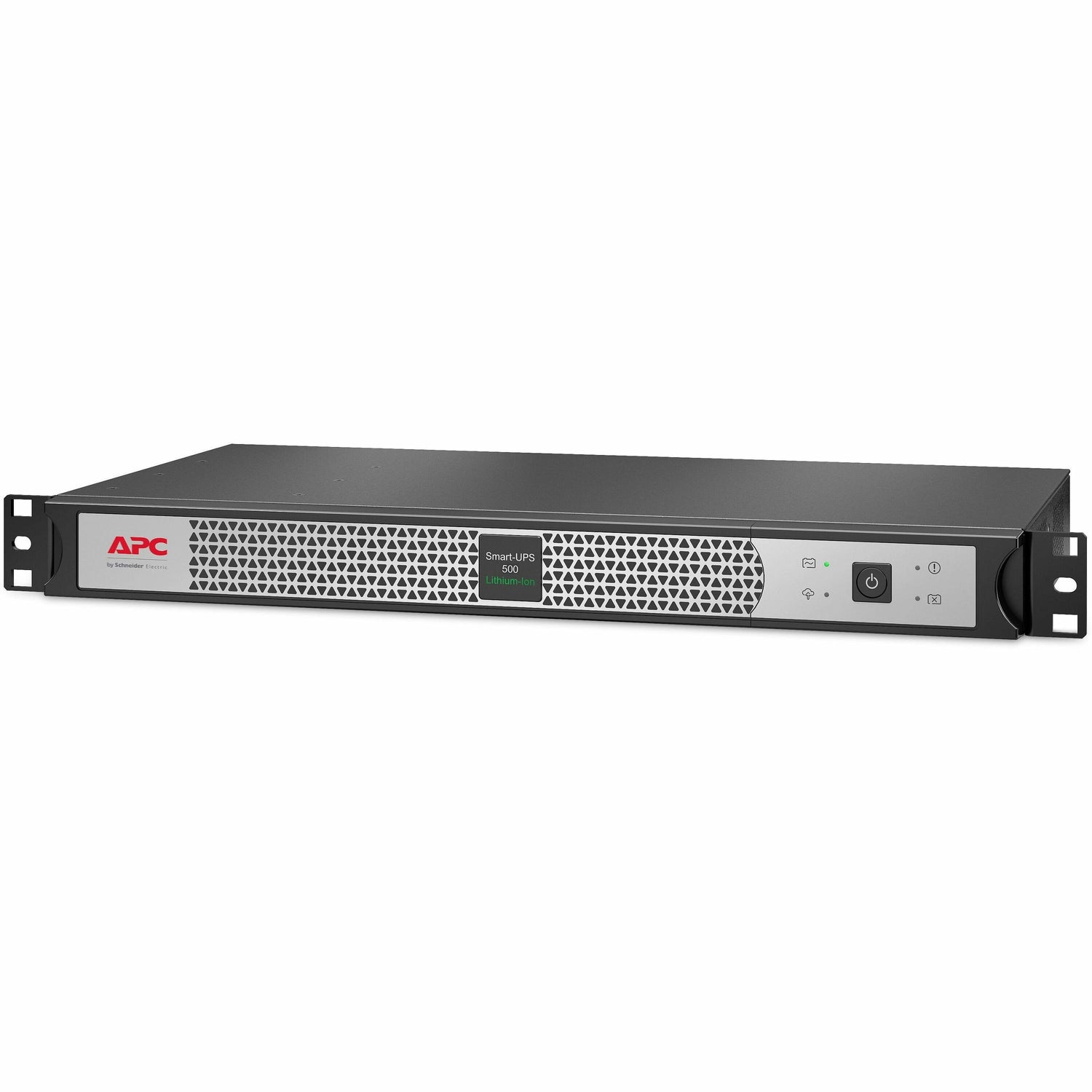

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, SmartConnect Port, Short Depth — SCL500RM1UC

Regular price $559.00 USD
Shipping calculated at checkout.


Request a quote for this item

Volume or contract pricing? Get a written quote with confirmed lead time.

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

More from the Manufacturer

  • Peace of mind with a 5-year warranty on UPS and battery
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
  • Cloud-based remote power monitoring via SmartConnect Ethernet Port
  • Short depth UPS provides extra space for cable management
  • Lithium-ion battery minimizes the need to replace battery during the life time of UPS
  • Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
  • 500VA/400W line interactive pure sine wave 1U rackmount UPS

Specifications

  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack-mountable
  • Product Type
    Line-interactive UPS
  • Limited Warranty
    5 Year
  • Energy Star
    Yes
  • Rack Height
    1U
  • Manufacturer
    Schneider Electric SA
  • Country of Origin
    Philippines
  • Cord Length
    6 ft
  • Product Line
    Smart-UPS
  • Hot Swappable
    Yes
  • Manufacturer Website Address
    http://www.schneider-electric.com
  • Output Voltage
    120 V AC
  • Waveform Type
    Sine Wave
  • Battery Chemistry
    Lithium Ion (Li-Ion)
  • Plug/Connector Type
    NEMA 5-15P
  • Serial Port
    Yes
  • Receptacle Detail
    4 x NEMA 5-15R
  • Typical Battery Recharge Time
    3 Hour
  • Network (RJ-45)
    Yes
  • Surge Energy Rating
    680 J
  • AVR
    Yes
  • Backup/Run Time (Full Load)
    2.70 Minute
  • Replaceable Battery
    Yes
  • Number of Battery & Surge Outlets
    4
  • Transfer Time
    10 ms
  • Input Voltage
    120 V
  • Receptacle Type
    NEMA 5-15P
  • Battery Characteristics
    Valve-regulated
  • Maximum Operating Temperature
    104°F (40°C)
  • Product Color
    Black,Silver
  • Package Contents
    Smart-UPS 500VA Rack/Floor Mountable UPS CD with software Documentation CD Installation guide Rack mounting support rails USB cable
  • Input Voltage Range
    92 V AC - 139 V AC
  • Backup/Run Time (Half Load)
    6.30 Minute
  • Application/Usage
    Network,Server,POS Terminal,Router,Switch,Network Hub,Equipment,Business,Storage,Security System,Communication System,Voice/Data Network
  • Load Capacity (Watt)
    400 W
  • Storage Relative Humidity
    10% - 90%
  • Output Frequency
    60 Hz
  • Sound Emission (A-Weighted)
    45 dB(A)
  • Dataline Protection
    RJ-45
  • Alarm
    On Battery,Low Battery,Configurable Delay
  • Input Frequency
    63 Hz
  • Storage Temperature
    5°F (-15°C) - 113°F (45°C)
  • USB (HID Compliant) Port
    Yes
  • EPO Port
    Yes
  • Maximum Operating Elevation
    6561 ft
  • Maximum Storage Elevation
    49212 ft
  • Operating Humidity
    10% - 90%
  • Status Indicators
    LED Display
  • Additional Warranty Information
    5 year repair or replace
  • Network Management
    SmartConnect
  • Load Capacity (VA)
    500 VA
  • Software Included
    Powerchute Serial Edition
