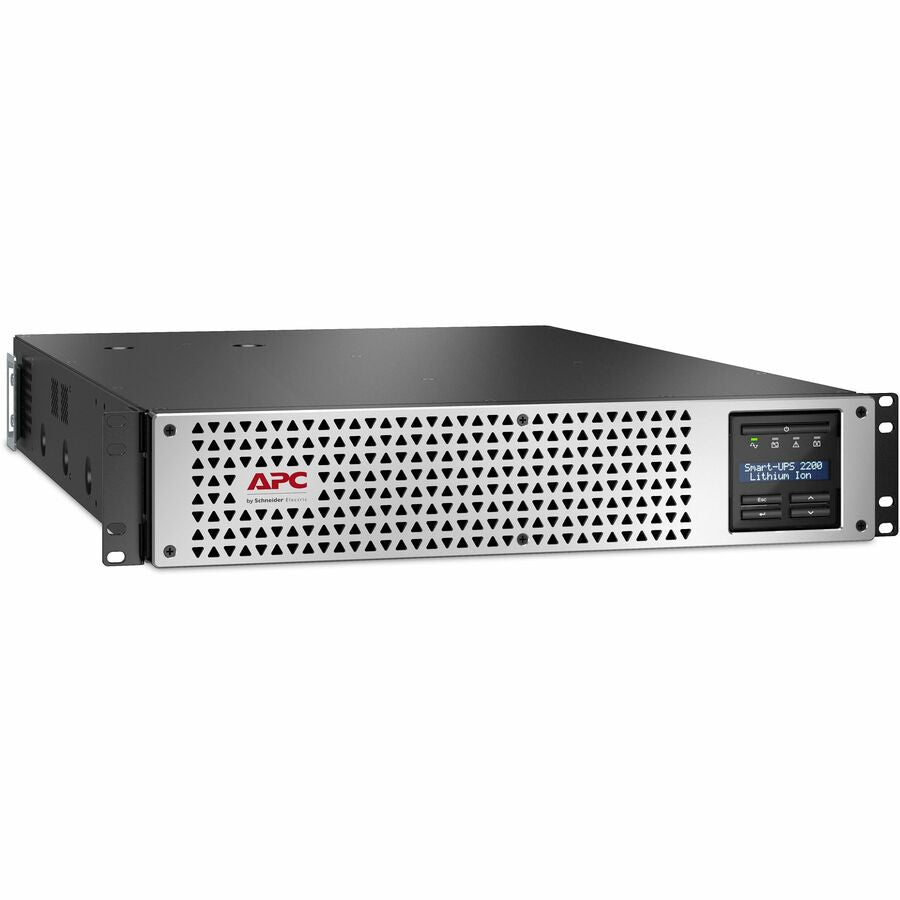

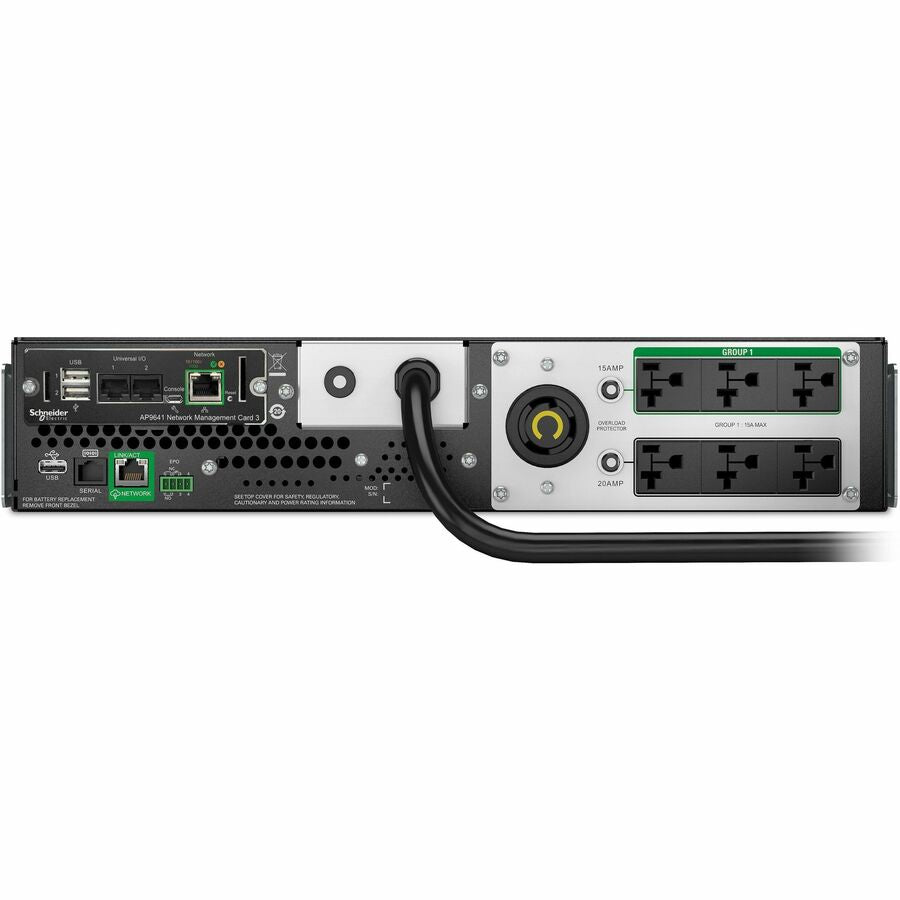

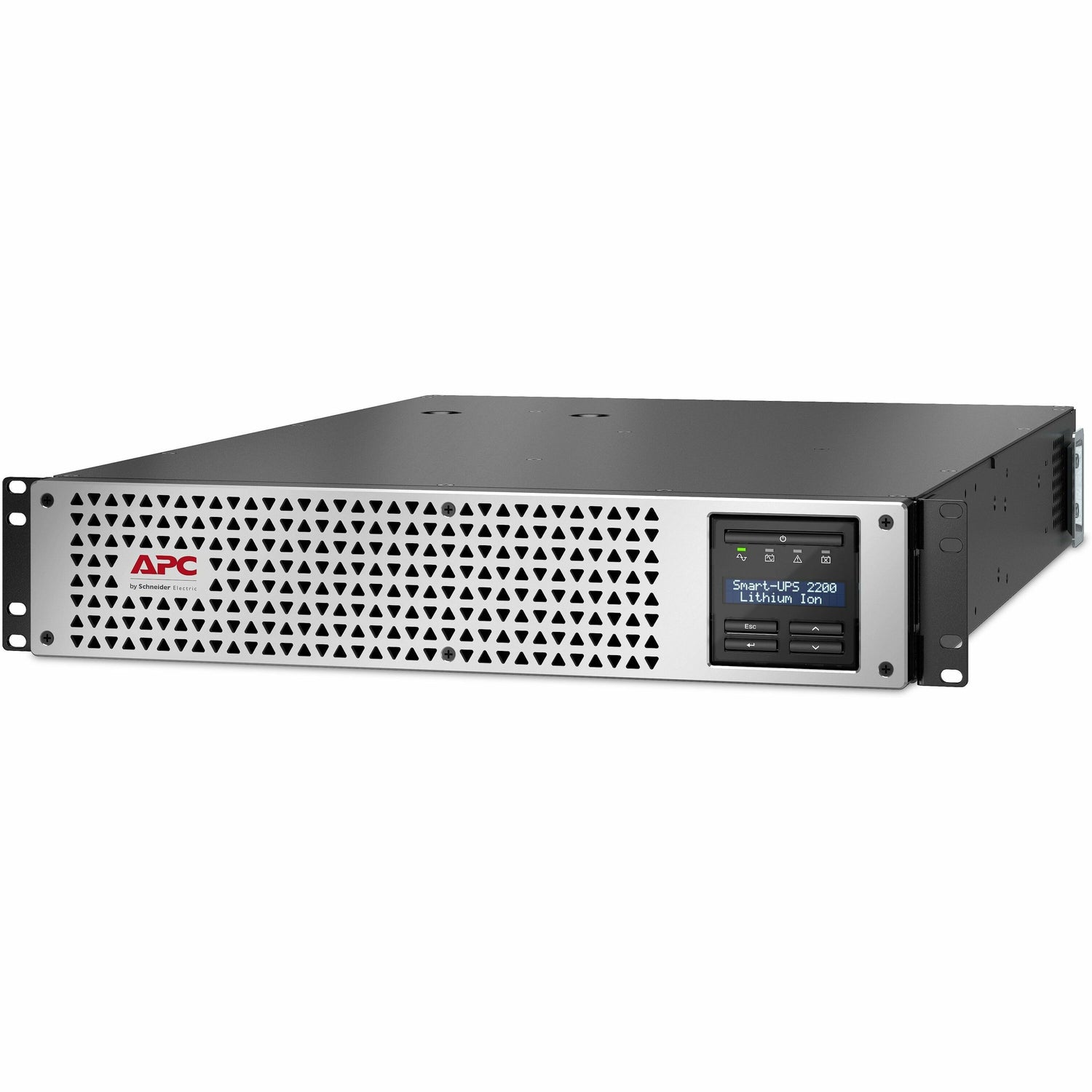

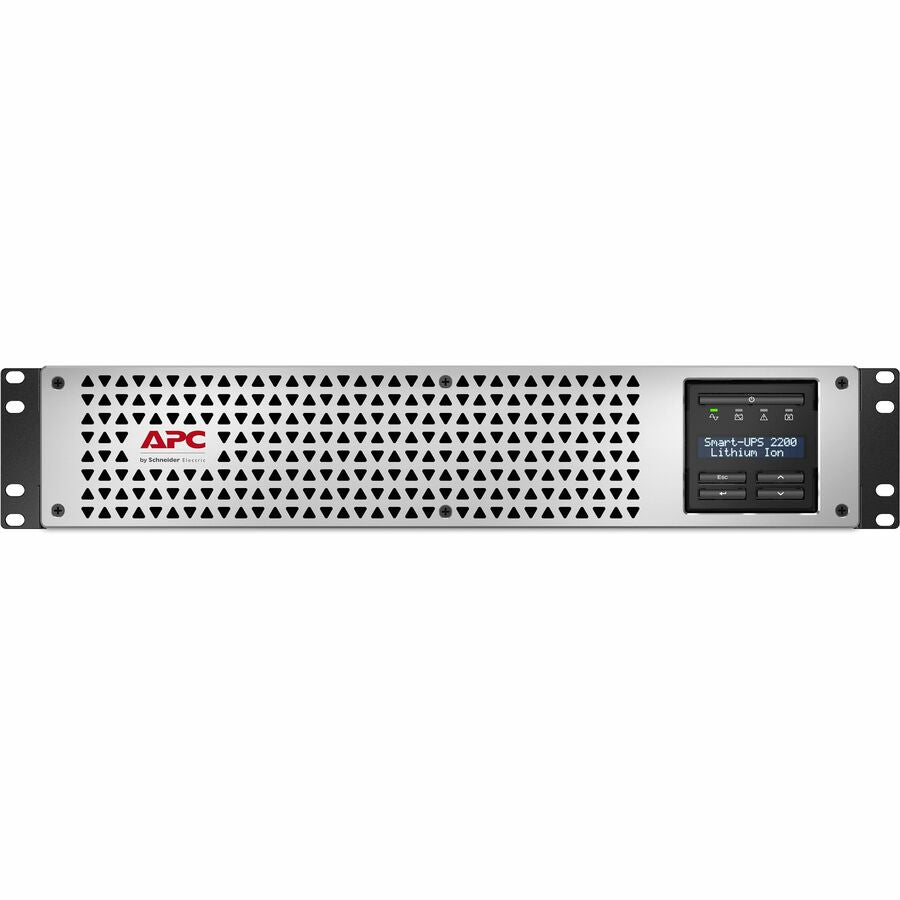

APC Smart-UPS, Line Interactive, 2200VA, Lithium-ion, Rackmount 2U, 120V, 1x NEMA L5-20R+6x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD — SMTL2K2RM2UCL
APC Smart-UPS, Line Interactive, 2200VA, Lithium-ion, Rackmount 2U, 120V, 1x NEMA L5-20R+6x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD — SMTL2K2RM2UCL is backordered and will ship as soon as it is back in stock.
We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.
APC Smart-UPS, Line Interactive, 2200VA, Lithium-ion, Rackmount 2U, 120V, 1x NEMA L5-20R+6x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD — SMTL2K2RM2UCL is backordered and will ship as soon as it is back in stock.
Description
Description
- 2200VA/1920W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Peace of mind with a 5-year warranty on UPS and battery
- 1x NEMA L5-20R in addition to 6x NEMA 5-20R
Specifications
Specifications
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Form FactorRack-mountable
-
Product TypeLine-interactive UPS
-
Rack Height2U
-
Limited Warranty5 Year
-
Energy StarYes
-
Packaged Quantity1
-
ManufacturerSchneider Electric SA
-
Product LineSmart-UPS
-
Cord Length8 ft
-
Manufacturer Website Addresshttp://www.schneider-electric.com
-
Waveform TypeSine Wave
-
Battery ChemistryLithium Ion (Li-Ion)
-
USBYes
-
Plug/Connector TypeNEMA L5-20P
-
AVRYes
-
Typical Battery Recharge Time2 Hour
-
Backup/Run Time (Full Load)7.80 Minute
-
Transfer Time10 ms
-
Maximum Operating Temperature104°F (40°C)
-
Number of Batteries1
-
Backup/Run Time (Half Load)16.40 Minute
-
Product ColorBlack,Silver
-
Receptacle Detail1 x NEMA L5-20R,6 x NEMA 5-20R
-
Output Voltage110 V AC,120 V AC,125 V AC
-
Battery Life10 Year
-
Output Frequency60 Hz
-
AlarmOn Battery,Low Battery,Overload
-
Input Frequency60 Hz
-
Maximum Operating Elevation10000 ft
-
Storage Temperature5°F (-15°C) - 113°F (45°C)
-
Maximum Storage Elevation50000 ft
-
EPO PortYes
-
Sound Emission55 dB
-
Surge Energy Rating530 J
-
DisplayLCD/LED
-
Load Capacity (Watt)1920 W
-
Thermal Dissipation63.01 W
-
Input Voltage Range75 V AC -154 V AC,82 V AC - 143 V AC
-
Battery Energy1209.6 kJ
-
Application/UsageIT,Network,Business,Critical System,Server,Virtual Machine,Hyperconverged Infrastructure (HCI),POS,Router,Switch,Hub
-
Status IndicatorsLED Indicators: On Line On Battery Replace Battery Overload
-
Additional Warranty Information5 year repair or replace
-
Package ContentsSmart-UPS 2200VA Rack-mountable UPS Rack Mounting brackets Rack Mounting support rails Screw Washer USB cable Ethernet patch cable
-
Receptacle TypeNEMA L5-20P
-
Network ManagementSmartConnect
-
Input Voltage110 V,120 V,125 V
-
Software IncludedPowerchute Serial Edition
-
Load Capacity (VA)1920 VA
