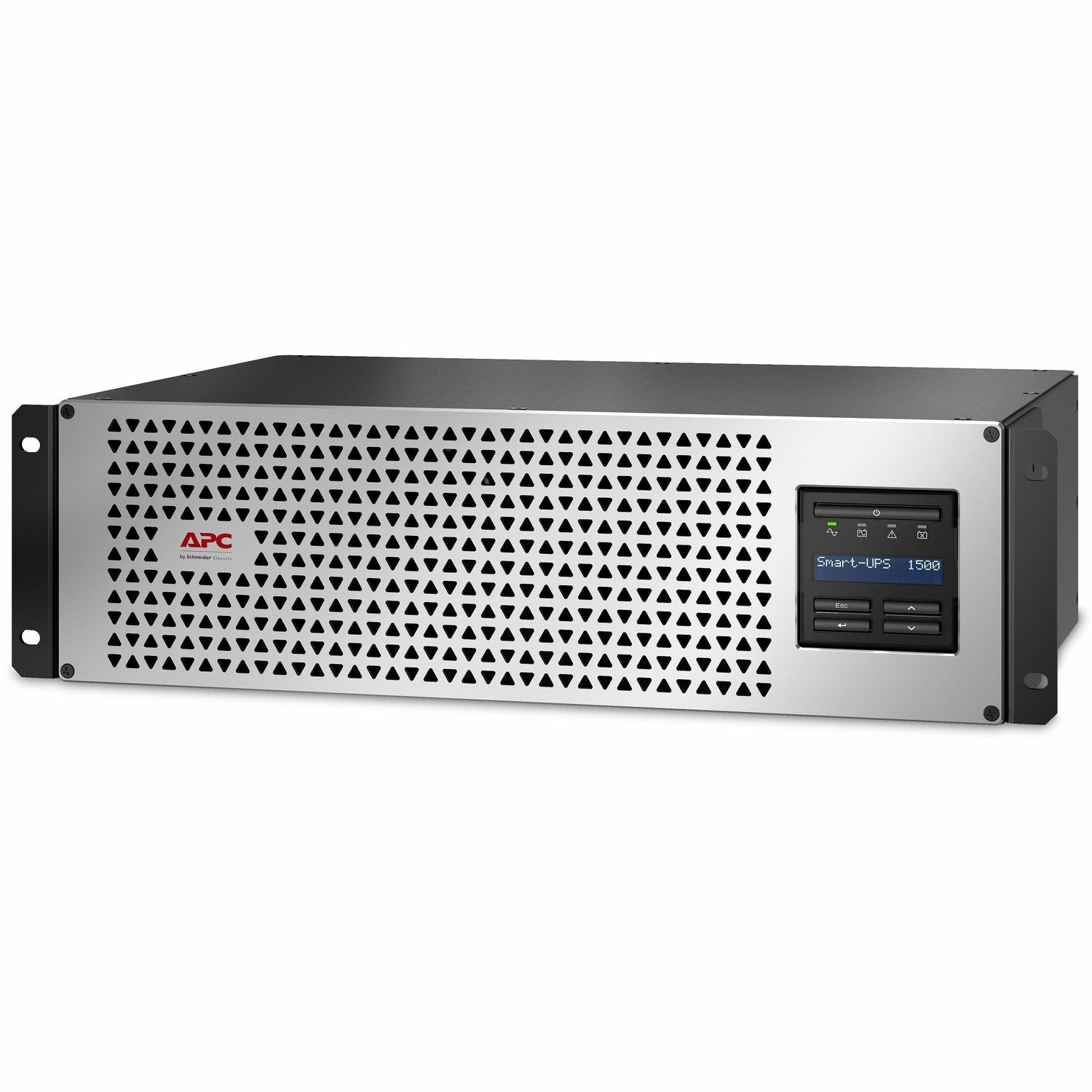

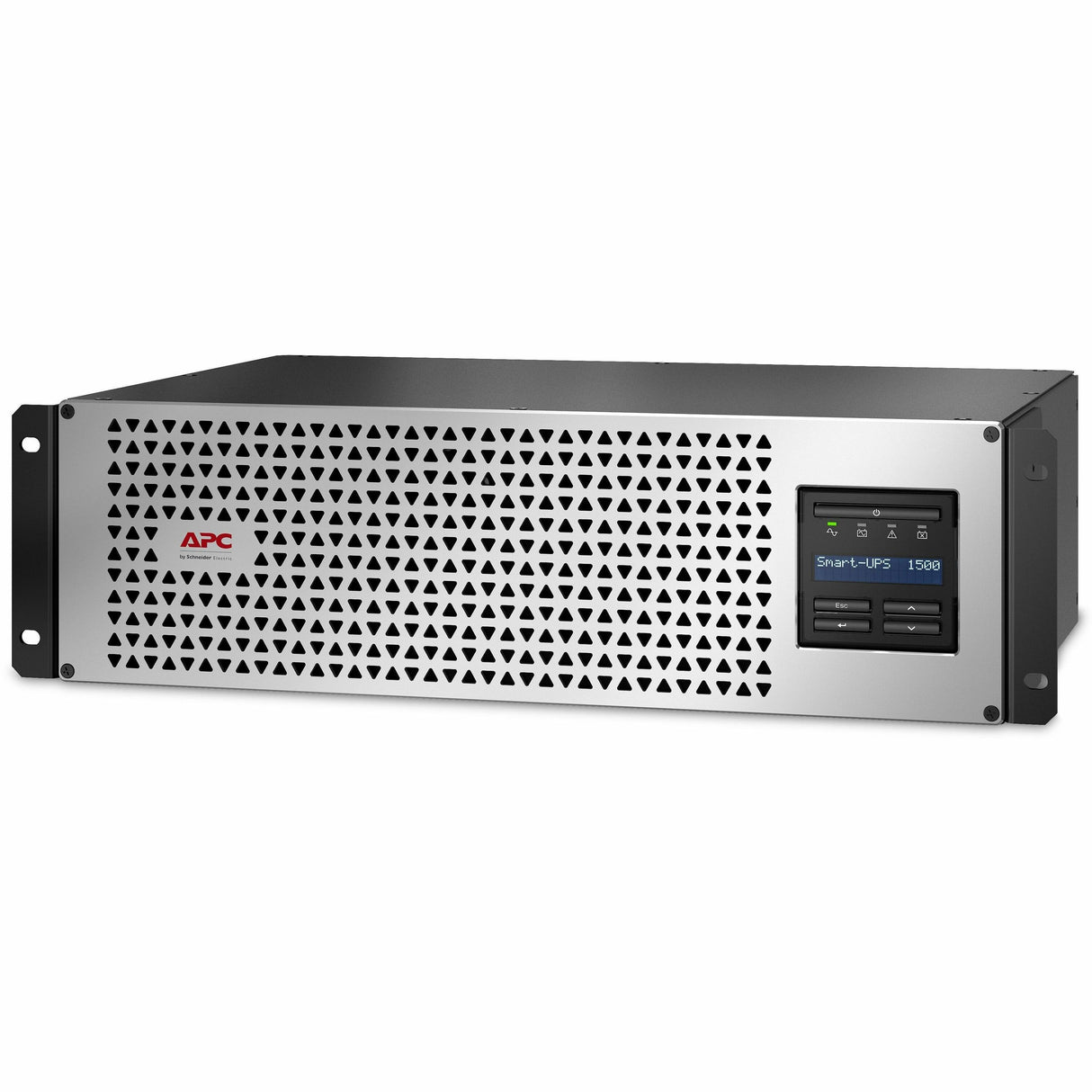

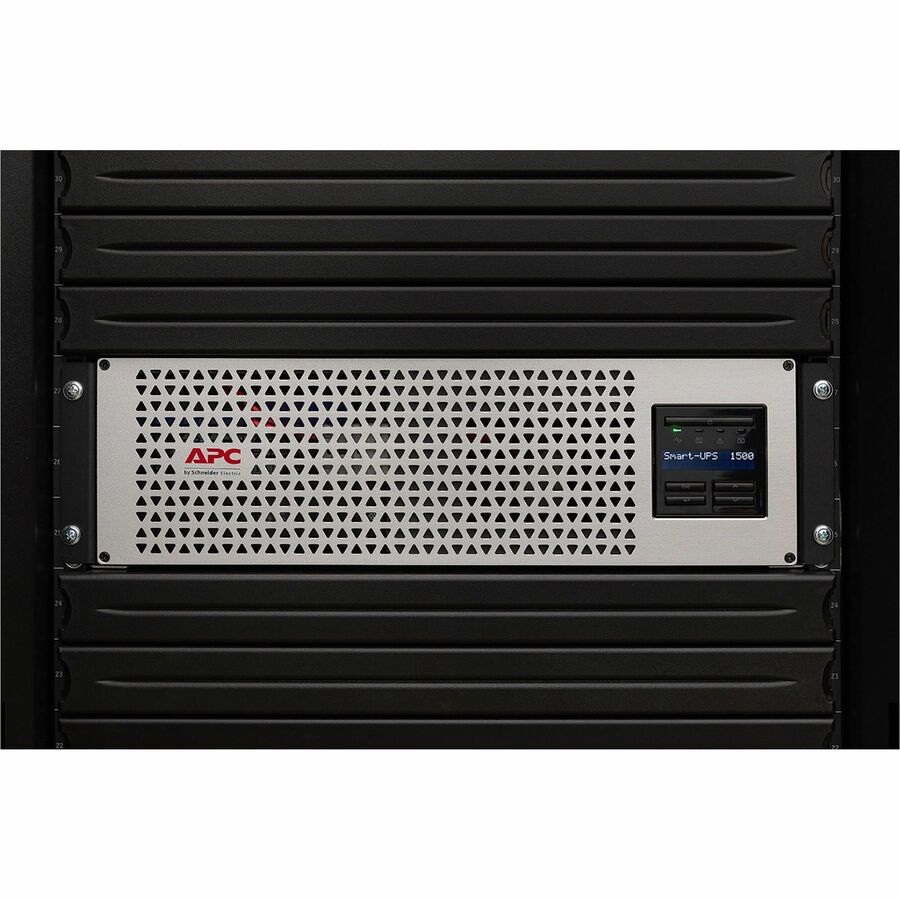

APC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+Network Card, Short Depth, AVR, LCD — SMTL1500RM3UCNC
APC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+Network Card, Short Depth, AVR, LCD — SMTL1500RM3UCNC is backordered and will ship as soon as it is back in stock.
Volume or contract pricing? Get a written quote with confirmed lead time.
APC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+Network Card, Short Depth, AVR, LCD — SMTL1500RM3UCNC is backordered and will ship as soon as it is back in stock.
Description
Description
- 1500VA/1350W line interactive pure sine wave 3U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
- Short depth UPS provides extra space for cable management
- 1-Year Secure Network Management Card subscription included
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Preinstalled Network Management Card for network-based UPS monitoring & management
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- Peace of mind with a 5-year warranty on UPS and battery
Specifications
Specifications
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Form FactorRack-mountable
-
Product TypeLine-interactive UPS
-
Limited Warranty5 Year
-
ManufacturerSchneider Electric SA
-
Country of OriginPhilippines
-
Product LineSmart-UPS
-
Rack Height3U
-
Cord Length8 ft
-
Manufacturer Website Addresshttp://www.schneider-electric.com
-
Output Voltage120 V AC
-
Waveform TypeSine Wave
-
Battery ChemistryLithium Ion (Li-Ion)
-
Plug/Connector TypeNEMA 5-15P
-

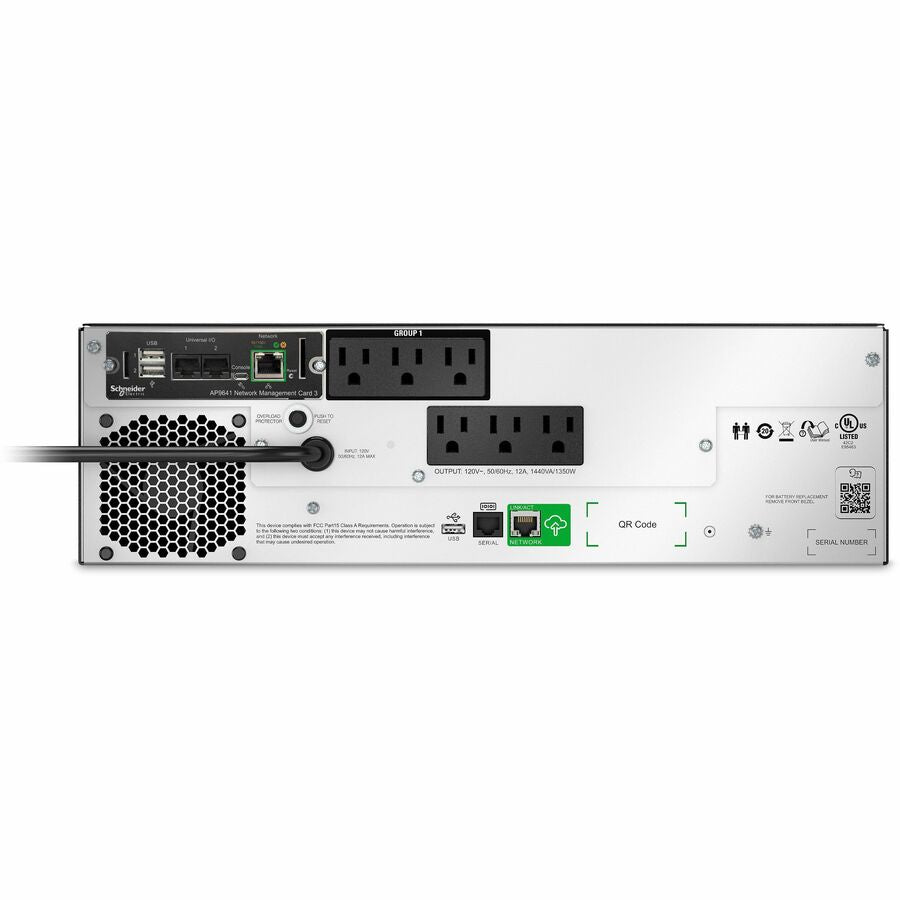

Receptacle Detail6 x NEMA 5-15R
-
Serial PortYes
-
Typical Battery Recharge Time3 Hour
-
Transfer Time6 ms
-
Network (RJ-45)Yes
-
Surge Energy Rating680 J
-
Number of Battery & Surge Outlets6
-
Input Voltage120 V
-
Receptacle TypeNEMA 5-15P
-
Maximum Operating Temperature104°F (40°C)
-
Product ColorBlack,Silver
-
Package ContentsSmart-UPS 1500VA Rack-mountable UPS Installation Guide Rack Mounting Support Rails USB Cable
-
Backup/Run Time (Full Load)3.03 Minute
-
Input Voltage Range75 V AC -154 V AC,82 V AC - 144 V AC
-
Backup/Run Time (Half Load)8.87 Minute
-
Overload ProtectionYes
-
DC System Voltage36 V DC
-
Sound Emission (A-Weighted)45 dB(A)
-
Storage Relative Humidity0% - 95%
-
Dataline ProtectionRJ-45
-
Thermal Dissipation39.56 W
-
Input Frequency60 Hz
-
Maximum Operating Elevation10000 ft
-
USB (HID Compliant) PortYes
-
AlarmLow Battery,On Battery,Configurable Delay
-
Storage Temperature-40°F (-40°C) - 95°F (35°C)
-
Maximum Storage Elevation25000 ft
-
Battery Energy864 kJ
-
Status IndicatorsMultifunction LCD Status and Control Console
-
Additional Warranty Information5 year repair or replace
-
Network ManagementSmartConnect
-
Load Capacity (Watt)1350 W
-
Load Capacity (VA)1440 VA
