APC by Schneider Electric  |  SKU: AP8641  |  UPC: 731304276975
Sold out
New arrival

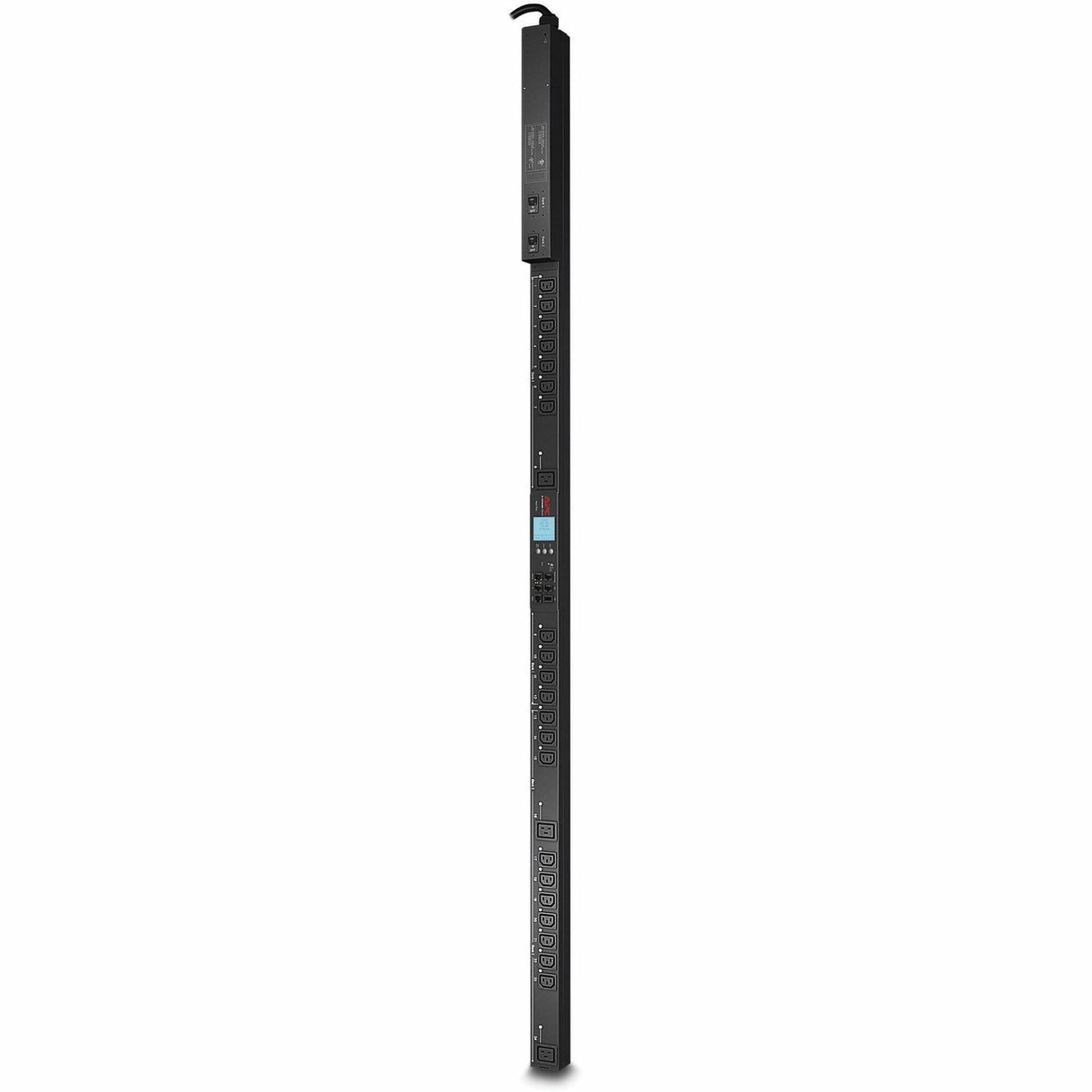

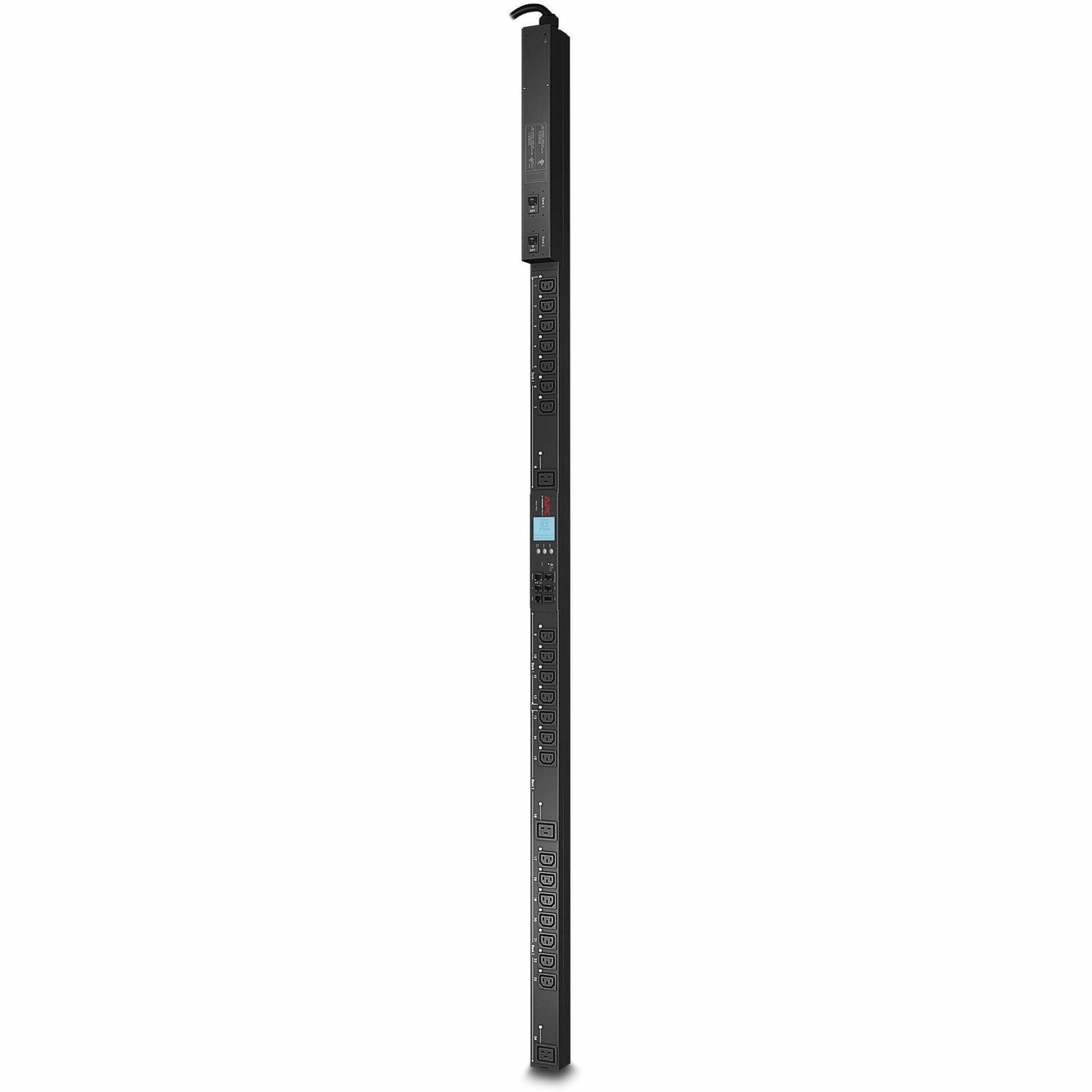

APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets — AP8641

Regular price $2,925.00 USD
Shipping calculated at checkout.


Out of stock — request a quote & lead time

We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.

Description

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

More from the Manufacturer

  • User-defined alarms warn of potential circuit overloads before critical IT failures occur
  • Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles
  • Current metering provides real-time remote monitoring of connected loads
  • Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding
  • Power sequencing delays allow users to define the order in which to power up or down attached equipment

Specifications

  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Limited Warranty
    2 Year
  • Manufacturer
    Schneider Electric SA
  • Product Type
    PDU
  • Rack Height
    0U
  • Mount Type
    Rack-mountable
  • Cord Length
    9.84 ft
  • Product Line
    Switched Rack
  • Product Model
    AP8641
  • Product Series
    AP8000
  • Manufacturer Website Address
    http://www.schneider-electric.com
  • PDU Type
    Switched

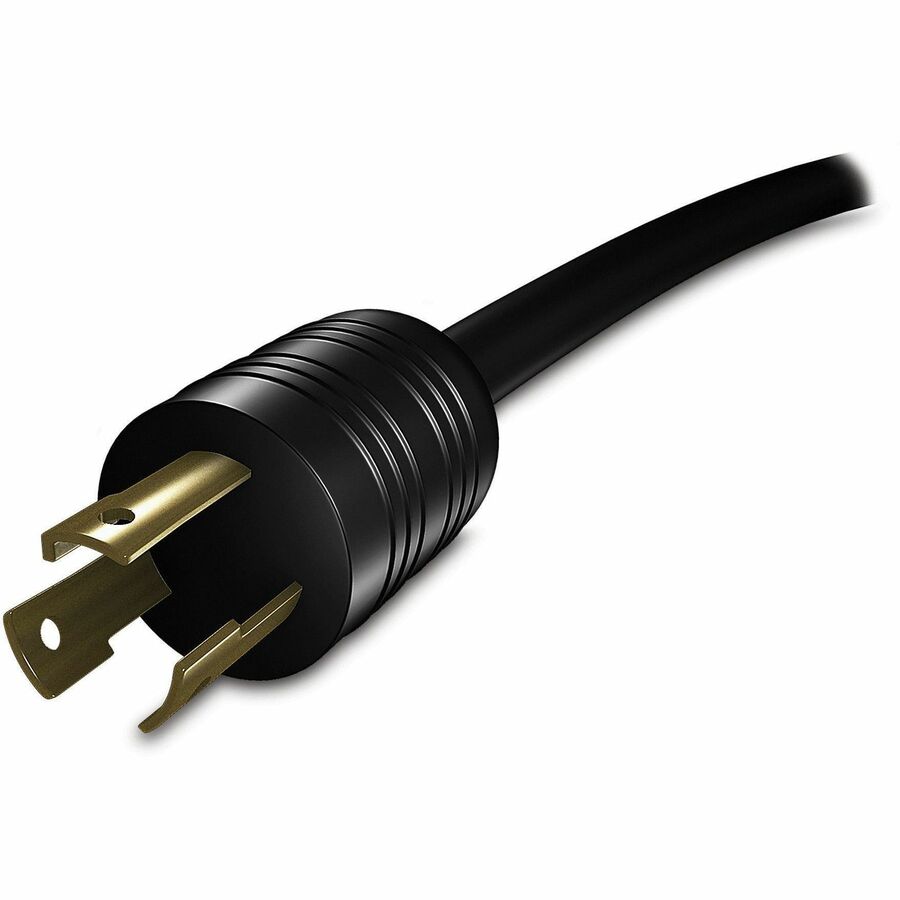

  • Plug/Connector Type
    NEMA L6-30P
  • Protection Type
    Overload Protection
  • Management
    Protocols: Web SNMP Telnet
  • Input Voltage Range
    200 V AC - 230 V AC
  • Output Voltage
    200 V AC,208 V AC
  • Receptacle Type
    IEC 60320 C19,IEC 60320 C13
  • Package Contents
    Switched Rack AP8000 24-Outlets PDU CAN port terminator Installation guide Rack mounting brackets Safety guide Serial configuration cable
  • Receptacle Detail
    21 x IEC 60320 C13,3 x IEC 60320 C19
  • Additional Warranty Information
    2 years repair or replace
  • Input Voltage
    200 V,208 V,230 V
