APC by Schneider Electric  |  SKU: SMX3000HVTUS  |  UPC: 731304340393
Sold out
New arrival

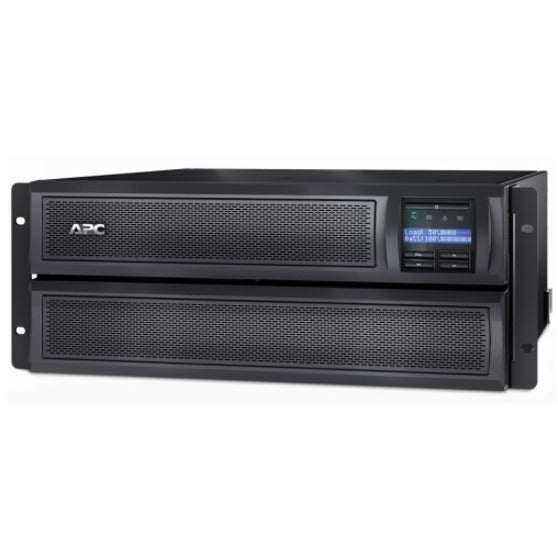

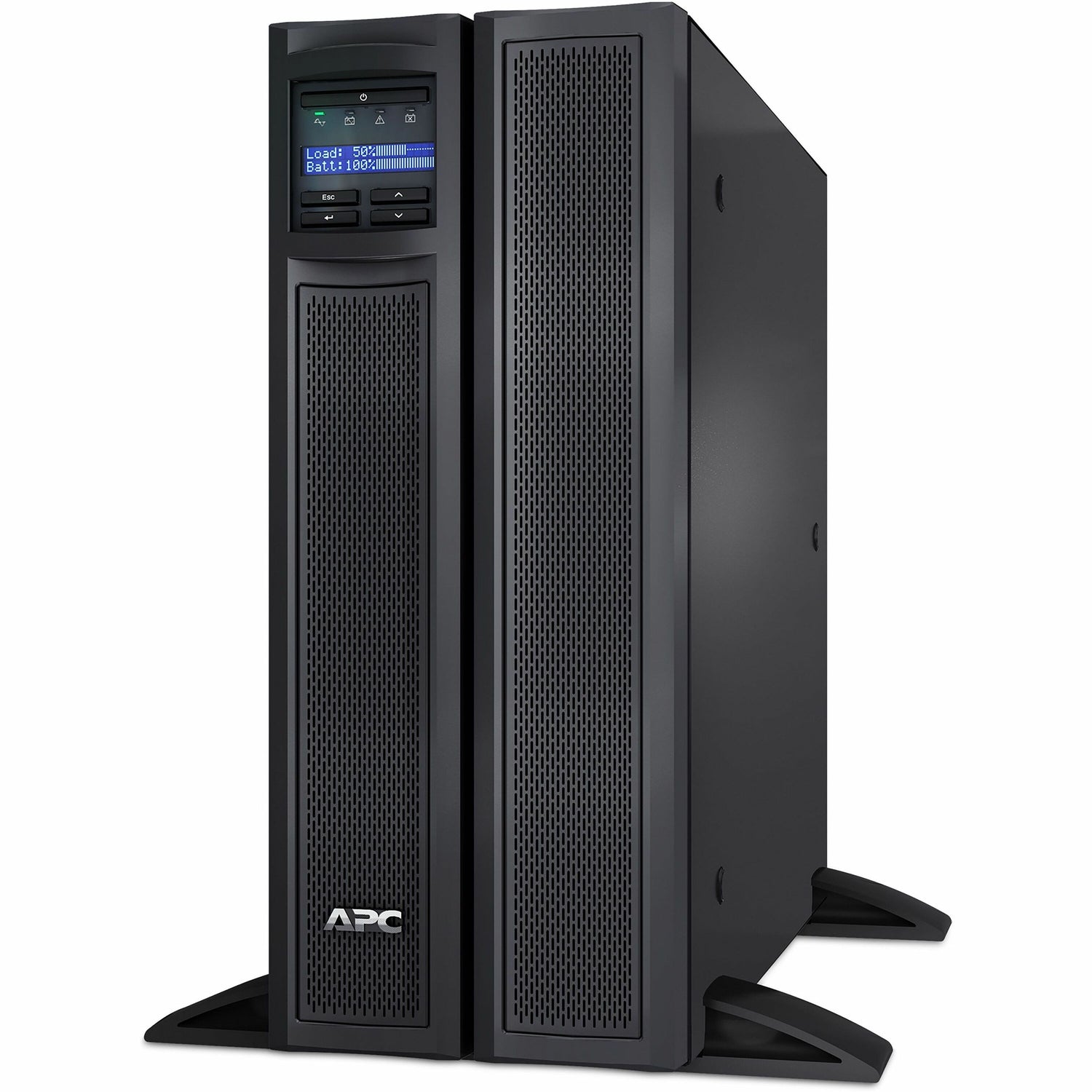

APC by Schneider Electric Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V — SMX3000HVTUS

$3,125.00 USD
Shipping calculated at checkout.
Out of stock — request a quote & lead time

We can still source this. A solutions architect will confirm availability, pricing, and lead time — usually within one business day.

Description
APC offers Uninterruptible Power Supplies (UPSs) that meet the requirements of the Trade Agreement Act (TAA) and are assembled in the U.S.A. The TAA Compliant Smart-UPS are intelligent and efficient network power protection products ideal for supporting servers, point-of-sale devices, routers, switches, hubs and other network devices.

More from the Manufacturer

  • 3kVA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
  • User-selectable high voltage setting of 200V-240V
  • Add up to 10 external battery packs (SMX120BP)
  • Short depth UPS provides extra space for cable management
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
  • Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
  • Ideal for servers, storage, networking & commercial applications

Specifications
  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack-mountable
  • Product Type
    Line-interactive UPS
  • TAA Compliant
    Yes
  • Limited Warranty
    3 Year
  • Energy Star
    Yes
  • Manufacturer
    Schneider Electric SA
  • Rack Height
    4U
  • Hot Swappable
    Yes
  • Product Color
    Black
  • Cord Length
    8.01 ft
  • Product Line
    Smart-UPS X
  • Product Model
    SMX3000HVTUS
  • Manufacturer Website Address
    http://www.schneider-electric.com
  • Waveform Type
    Sine Wave
  • Output Voltage
    208 V AC
  • Typical Battery Recharge Time
    3 Hour
  • Battery Chemistry
    Lead Acid
  • Plug/Connector Type
    NEMA L6-20P
  • Backup/Run Time (Full Load)
    6.30 Minute
  • Transfer Time
    2 ms
  • Package Contents
    Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V CD with software Documentation CD Rack mounting brackets Smart UPS signalling RS-232 cable USB cable User manual
  • Input Voltage Range
    141 V AC - 280 V AC
  • Application/Usage
    Server,Router,Network Switch,Network Hub,Security System,Network Device
  • Input Voltage
    208 V
  • Surge Energy Rating
    645 J
  • Number of Battery & Surge Outlets
    11
  • Additional Warranty Information
    3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
  • Receptacle Type
    NEMA L6-20P
  • Receptacle Detail
    2 x IEC 320-C19,2 x NEMA L6-20R,3 x IEC Jumper,4 x IEC 320-C13
  • Software Included
    Powerchute Serial Edition
  • Load Capacity (VA)
    3000 VA
  • Load Capacity (Watt)
    2700 W
