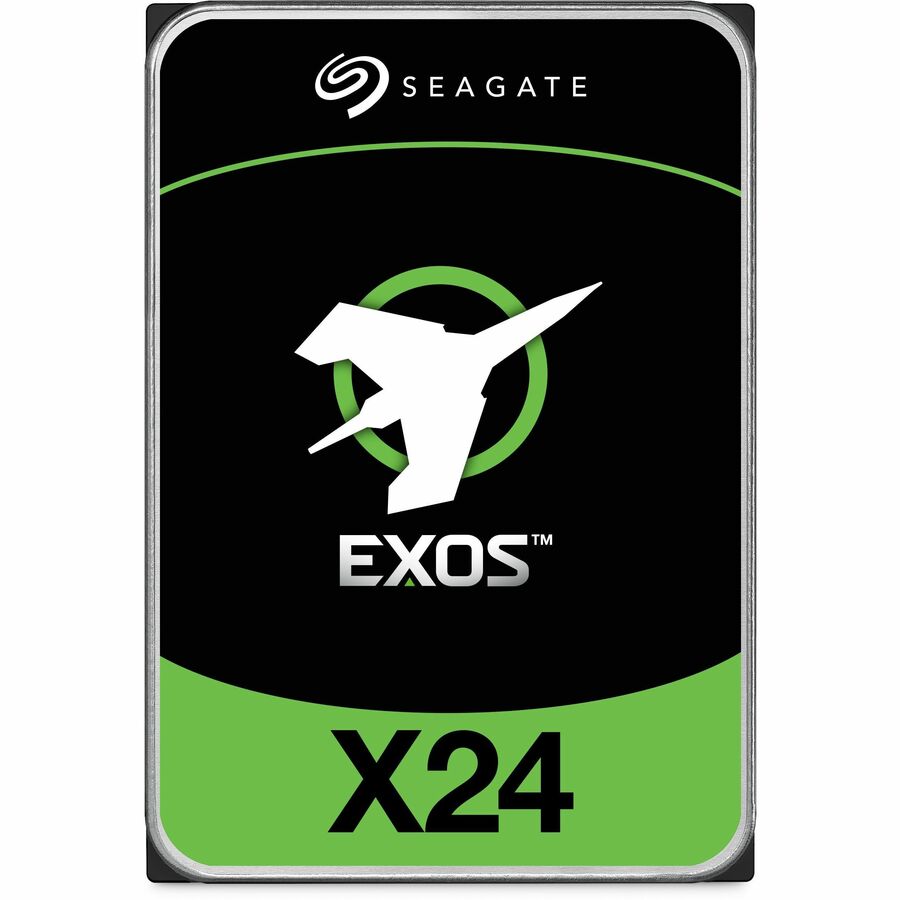

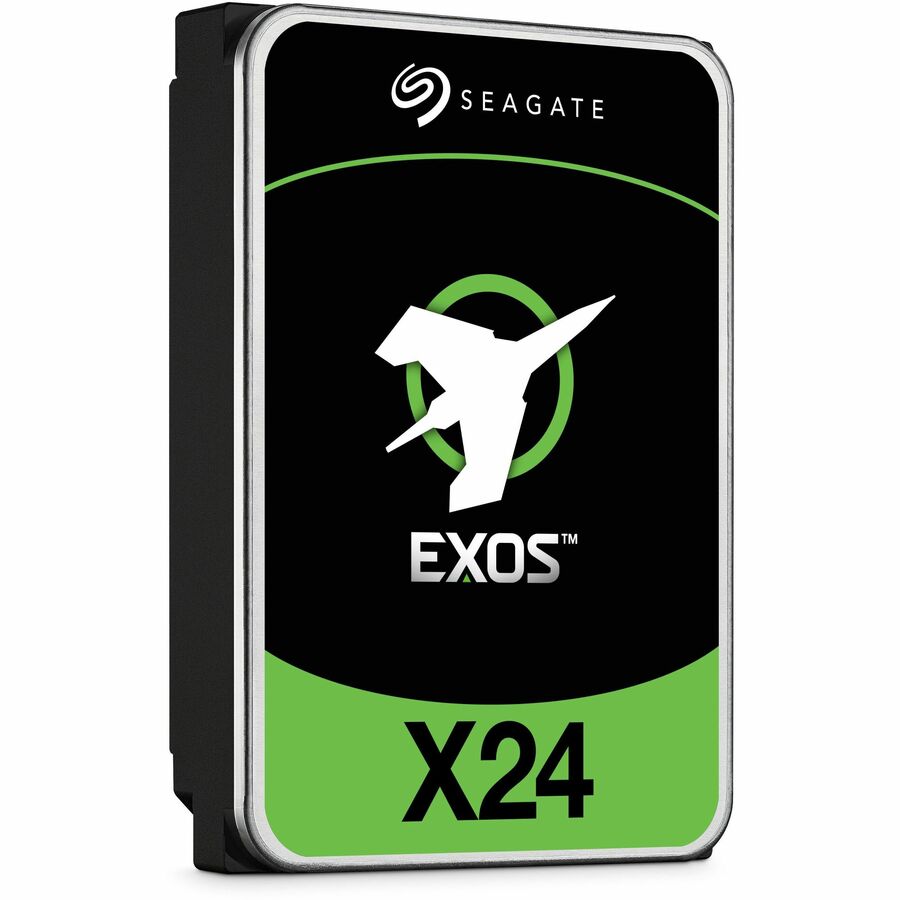

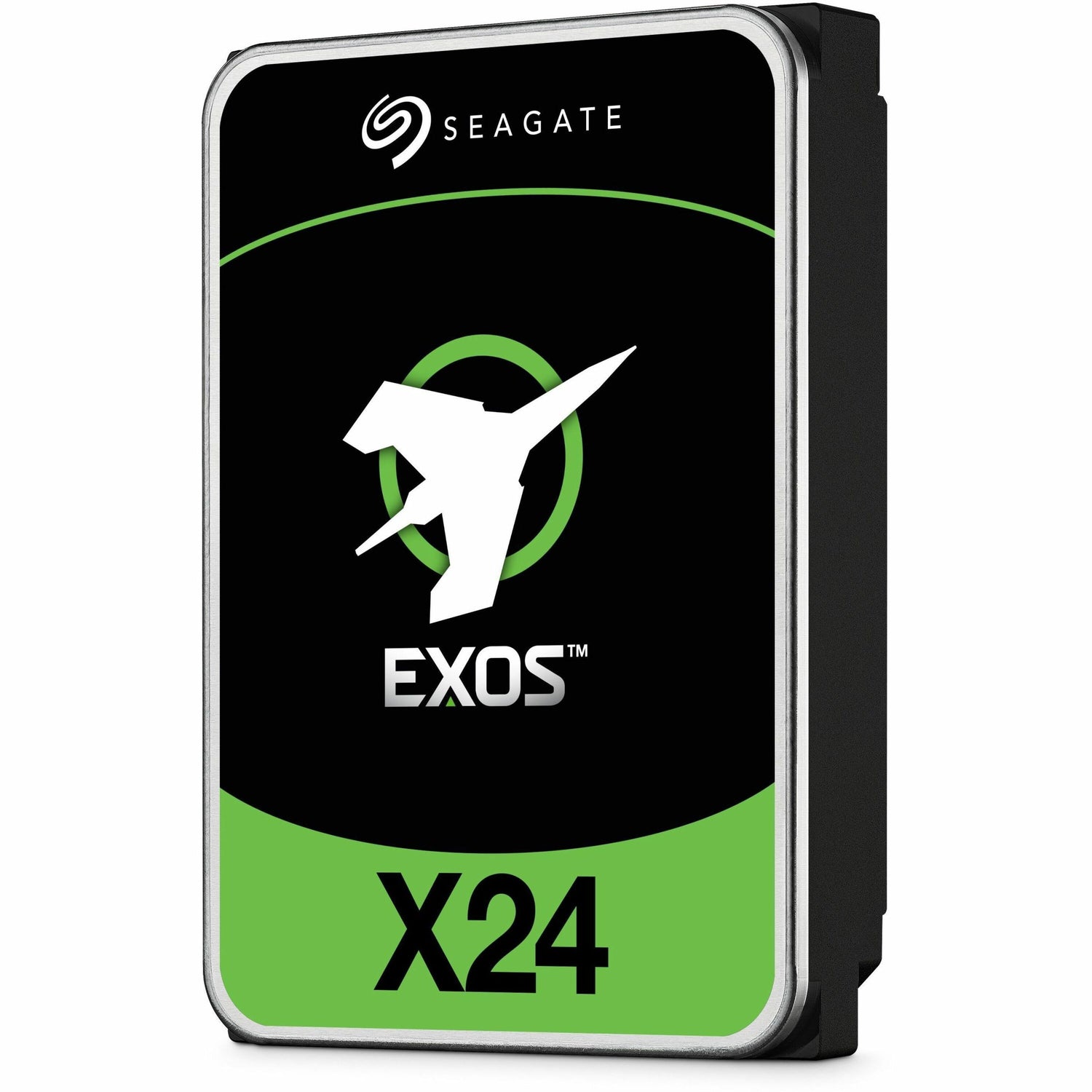

Seagate Exos X24 ST16000NM007H 16 TB Hard Drive - 3.5" Internal - SAS (12Gb/s SAS) - Conventional Magnetic Recording (CMR) Method — ST16000NM007H
Seagate Exos X24 ST16000NM007H 16 TB Hard Drive - 3.5" Internal - SAS (12Gb/s SAS) - Conventional Magnetic Recording (CMR) Method — ST16000NM007H is backordered and will ship as soon as it is back in stock.
Available to source
This item is out of stock — but we can still source it. A solutions architect will confirm availability, pricing, and lead time in writing.
- MPN
- ST16000NM007H
- SKU
- ST16000NM007HSP
Source this item
Send the part and we’ll return a documented quote with confirmed availability and lead time — usually within one business day.
Request a quote & lead time- Written quote
- Confirmed lead time
- Reply within one business day
Seagate Exos X24 ST16000NM007H 16 TB Hard Drive - 3.5" Internal - SAS (12Gb/s SAS) - Conventional Magnetic Recording (CMR) Method — ST16000NM007H is backordered and will ship as soon as it is back in stock.
Description
Description
Powerful performance with proven technology-Seagate's ® Exos® X24 drives are built off the platform that's shipped millions globally and deployed in leading cloud service provider solutions-making them the most sought-after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure™, Exos X24 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.
Maximum Storage Capacity for Highest Rack Space Efficiency
Market-leading 24TB HDD offering the highest capacity available for more petabytes per rack
Highly reliable performance with enhanced caching-making it the logical choice for cloud data center and massive scale-out data center applications
Hyperscale SATA model tuned for large data transfers and low latency
PowerBalance™ feature optimizes watts per TB
Maximize total cost of ownership savings through lower power and weight with helium-sealed drive design
Proven helium side-sealing weld technology for added handling, robustness, and leak protection
Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
Data protection and security-featuring Seagate Instant Secure for safe, affordable, fast, and easy drive retirement
Proven enterprise-class reliability backed by a 5-year limited warranty and 2.5M-hr MTBF rating
- Scalable hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore- D2D, virtual tape
- Centralized surveillance
Specifications
Specifications
-
HDD capacity16 TB
-
HDD speed7200 RPM
-
HDD size3.5"
-
InterfaceSAS
-
TypeHDD
-
Component forPC
-
Storage drive buffer size512 MB
-
HDD interface transfer rate12 Gbit/s
-
HDD sustained transfer rate272 MiB/s
-
HDD average transfer rate285 MB/s
-
Average latency4.16 ms
-
Uncorrectable Bit Error Rate (UBER)< 1 per 10^15 bits read
-
Rotational Vibration (RV) sensorsYes
-
Mean time between failures (MTBF)2500000 h
-
Power consumption (read)9.8 W
-
Power consumption (write)8.2 W
-
Power consumption (idle)6.5 W
-
Operating voltage5 / 12 V
-
Operating temperature (T-T)10 - 60 °C
-
Operating vibration2.27 G
-
Operating shock40 G
-
Non-operating shock200 G
-
Width4.01" (101.8 mm)
-
Height1.03" (26.1 mm)
-
Depth5.79" (147 mm)
-
Weight24.2 oz (685 g)
-
Quantity per pack1 pc(s)
