Brother Mobile Solutions  |  SKU: TD4520DN  |  UPC: 012502671169
56% off

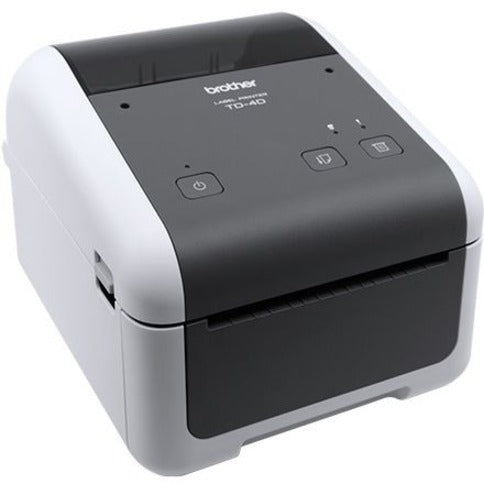

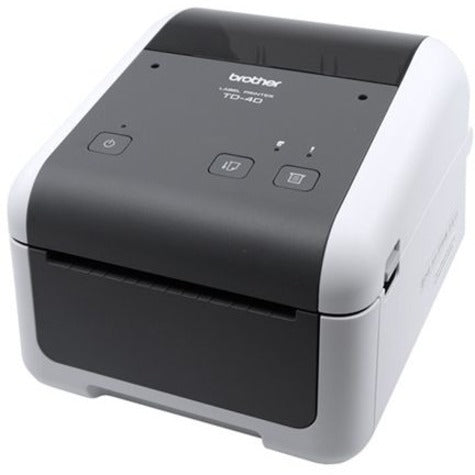

Brother TD4520DN Desktop Direct Thermal Printer - Monochrome - Label Print - Fast Ethernet - USB - Serial — TD4520DN

$445.99 USD $1,004.00
Shipping calculated at checkout.

Available to source

This item is out of stock — but we can still source it. A solutions architect will confirm availability, pricing, and lead time in writing.

MPN
TD4520DN
SKU
TD4520DN

Source this item

Send the part and we’ll return a documented quote with confirmed availability and lead time — usually within one business day.

Request a quote & lead time
  • Written quote
  • Confirmed lead time
  • Reply within one business day

Description

Crop function

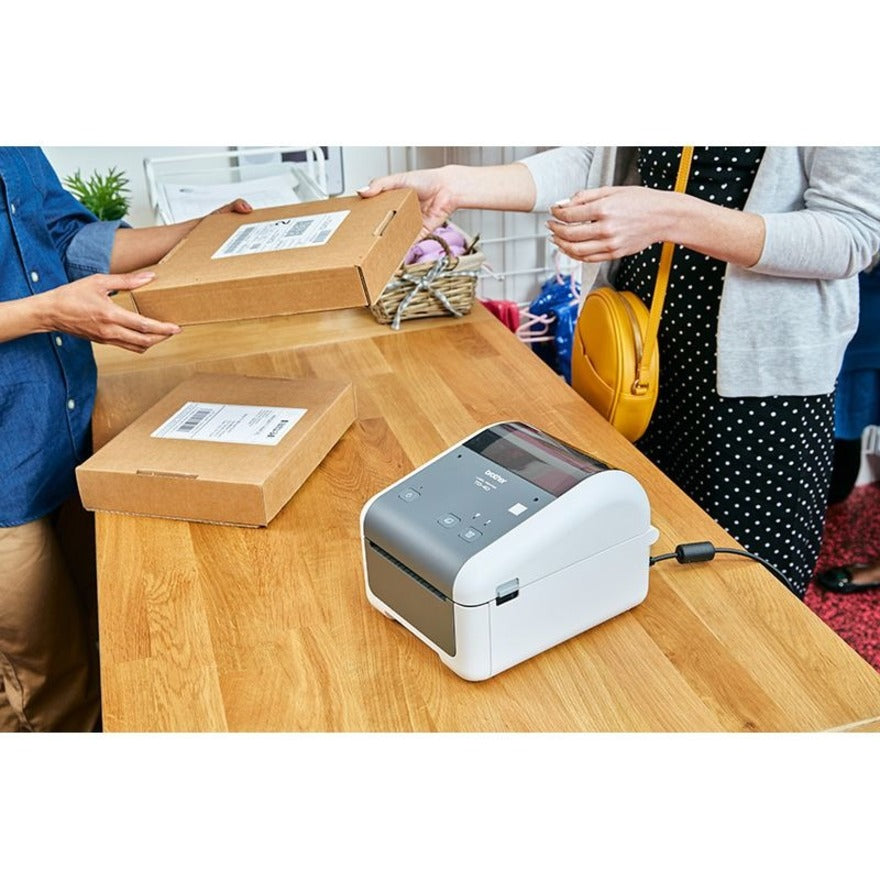

Ideal for creating shipping labels. Your A4 dispatch document is scanned and the barcode information is automatically processed. Individual labels are then printed from your TD-4520DN desktop label printer.

Seamless integration

To support integration, many printer command languages are supported. Including ZPL II emulation, Raster, CPCL emulation enabling integration into legacy systems.

Print from your Windows PC

 Create customer labels using Brother P-touch Editor. Easily add your company logo or select from hundreds of built-in images, symbols, barcodes and frames. Also, link to excel data to batch print labels.

Network connectivity

Sharing the TD-4520DN is simple with the integrated network port. Increase your teams productivity with this network desktop label printer. Many users can share the printer in a variety of locations.

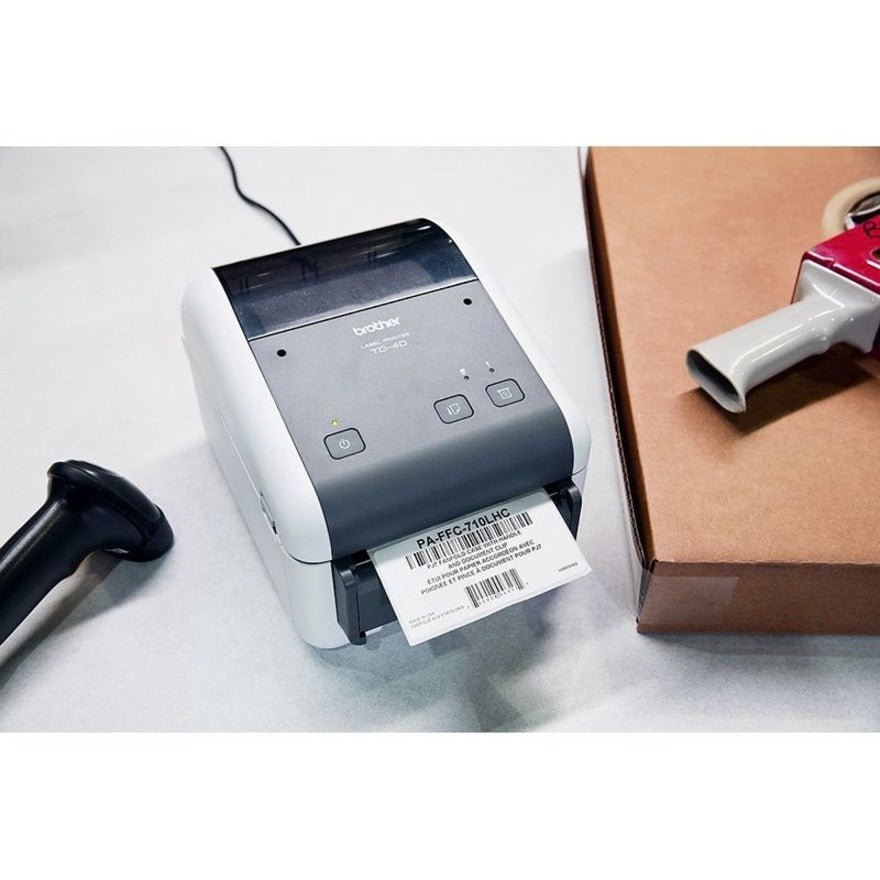

  • Print 4-inch barcodes, shipping labels, tags, and more with up to 6 inches per second print speed
  • 300dpi direct thermal print technology delivers high quality resolution
  • Connect easily with USB 2.0 and Ethernet Lan serial interfaces
  • Increase productivity with optional peeler and cutter accessories
  • Drop in and integrate seamlessly with industry-leading WMS systems and ZPL emulation
  • Create professional labels with the included P-touch Editor label design software
  • Expect unlimited printhead replacements for your Brother desktop printers while under warranty

Specifications
  • Print technology
    Direct thermal
  • Color
    No
  • Maximum resolution
    300 x 300 DPI
  • Print speed
    203 mm/sec
  • Minimum print length
    0.669" (1.7 cm)
  • Mirror printing
    Yes
  • Text style
    Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
  • Maximum label width
    4.65" (11.8 cm)
  • Maximum roll diameter
    5" (12.7 cm)
  • Core diameter
    0.5" (1.27 cm)
  • Connectivity technology
    Wired
  • Ethernet LAN
    Yes
  • Wi-Fi
    No
  • USB port
    Yes
  • Bluetooth
    No
  • USB 2.0 ports quantity
    1
  • RS-232 ports
    1
  • Page description languages
    CPCL-native, DPL, EPL2, ESC P, Raster_P, ZPL II
  • Internal memory
    256 MB
  • Flash memory
    64 MB
  • Built-in barcodes
    CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, ITF, POSTNET, UPC-A, UPC-E
  • Number of fonts
    6
  • Product color
    Gray, White
  • Display
    No
  • Built-in display
    No
  • Auto power off
    Yes
  • Windows operating systems supported
    Windows 10, Windows 7, Windows 8, Windows 8.1
  • Server operating systems supported
    Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
  • Mobile operating systems supported
    Android 4.1, Android 4.2, Android 4.2.1, Android 4.2.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 12, iOS 8.0, iOS 8.1, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
  • Linux operating systems supported
    Yes
  • Operating relative humidity (H-H)
    5 - 40%
  • Storage relative humidity (H-H)
    20 - 85%
  • Operating temperature (T-T)
    10 - 90 °C
  • Storage temperature (T-T)
    -20 - 60 °C
  • Width
    10.4" (265 mm)
  • Depth
    13.2" (335 mm)
  • Height
    10.2" (258 mm)
  • Weight
    6.7 lbs (3.04 kg)
  • Quantity per pack
    1 pc(s)
  • Package weight
    8.73 lbs (3.96 kg)
  • Cables included
    AC, USB
  • Quick start guide
    Yes
  • Warranty card
    Yes
  • AC adapter included
    Yes
  • Software development kit (SDK)
    Yes
  • Starter roll included
    Yes
  • Harmonized System (HS) code
    84433210
  • Pallet height
    5.67" (14.4 cm)
  • Pallet weight
    388.9 lbs (176.4 kg)
  • Number of cartons per pallet
    40 pc(s)
  • Number of cartons per pallet layer
    8 pc(s)
  • Number of layers per pallet
    5 pc(s)
  • Quantity per pallet
    40 pc(s)
  • Pallet type
    800 x 1200 mm
  • Networking features
    10/100BASE-TX
  • LED indicators
    Error, Power, Status
  • Country of origin
    China
  • Languages support
    Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
  • Date & time printing
    Yes
  • Number of languages
    18
  • Maximum print length
    118.1" (3 m)
  • Font styles
    Brougham,Brussels,Helsinki,Letter Gothic,San Diego
