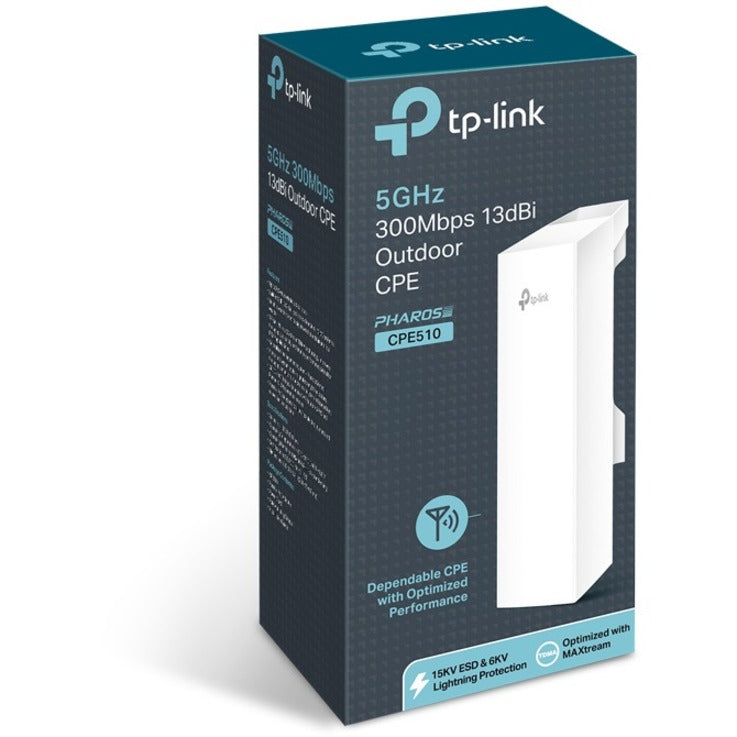

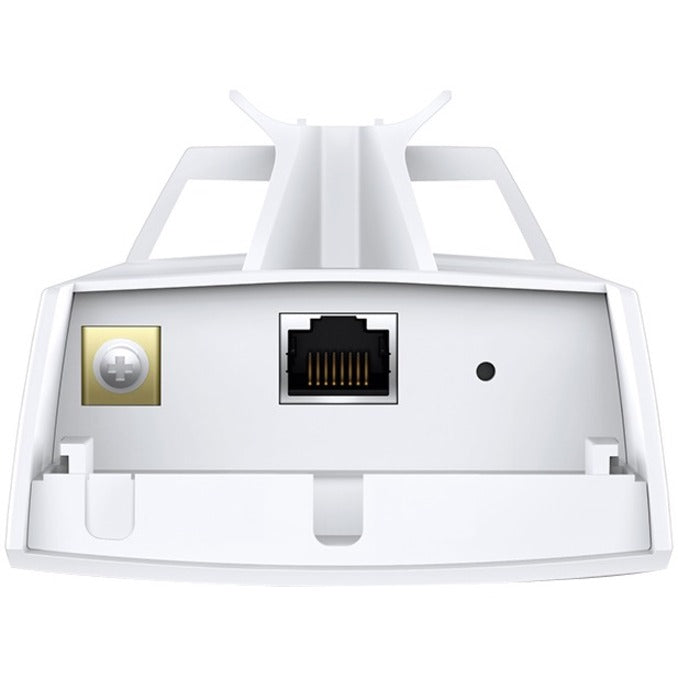

TP-Link CPE510 - 5GHz N300 Long Range Outdoor CPE for PtP and PtMP Transmission — CPE510

TP-LINK's 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Enterprise Hardware

With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30? (-22?) to +70 ? (158?).

Advanced Antenna System

• Built-in High Gain Dual-Polarized Antenna Dedicated metal reflector ensures higher gain and lower noise interference

15km+ Wireless Data Transmission

Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.

15km+ | TP-LINK MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.

Pharos Control - Centralized Management System

CPE510 also comes equipped with centralized management software that helps users easil manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS

User-friendly web-based management system allows professionals to do more specific configurations.

5GHz 300Mbps 13dBi Outdoor CPE CPE510

• Built-in 13dBi Dual-polarized Directional Antenna
• AP / Client / AP Router / AP Client Router (WISP) operation modes
• 6KV Lightning Protection
• Weather Proof Enclosure
• 15KV ESD Protection
• Passive PoE Adapter

More from the Manufacturer

• Connectivity technology: Wi-Fi Built In.
• Passive PoE adapter supports up to 60 meter (200 feet) power over Ethernet deployment and allows the device to be reset remotely.
• AP/ client/ AP router/ AP client router (WISP) operation modes.
• Centralized management system - Pharos control.
• TP-Link Pharos maxstream tdma (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for ptmp applications.
• System level optimizations for more than 15km long-range wireless transmission (only for paired Point-to-Point or Point-to-MultiPoint transmission).
• Adjustable transmission power from 0 to 27dBm/500mW.
• Built-in 13dBi 2x2 dual-polarized directional MIMO antenna.
