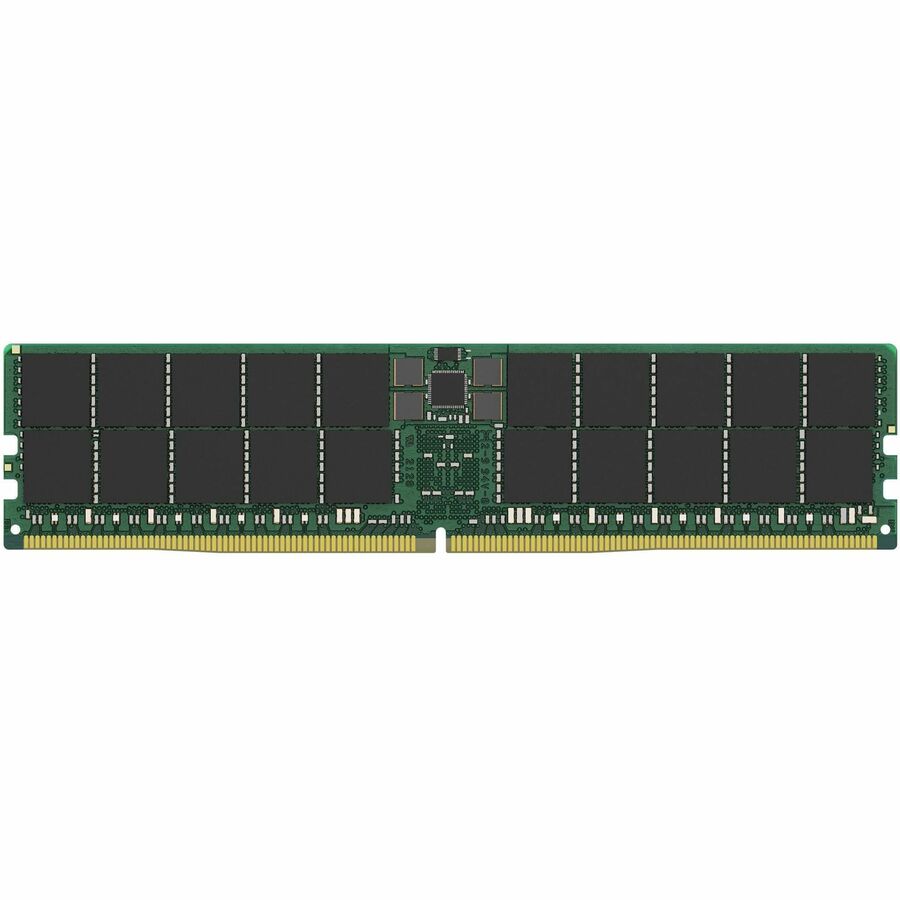

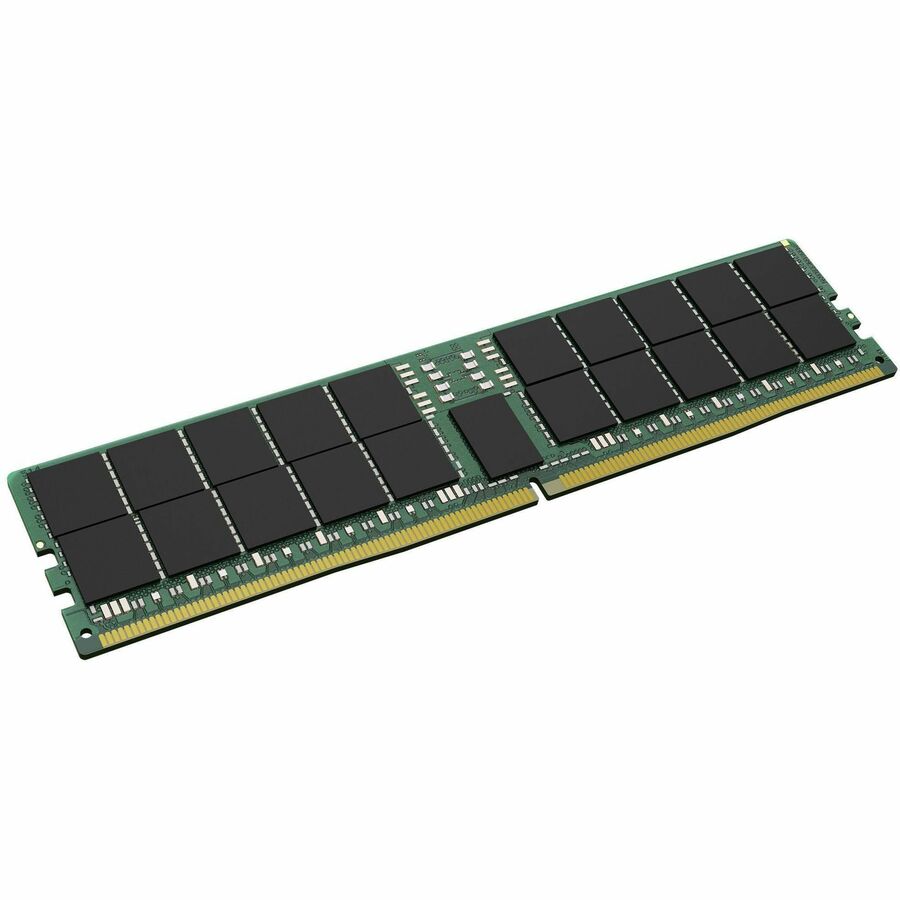

Kingston 48GB DDR5 5600MT/s ECC Registered DIMM — KSM56R46BD8PMI-48HMI

Kingston's KSM56R46BD8PMI-48HMI is a 6G x 80-bit (48GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 3G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• x80 ECC (x40, 2 independent I/O sub channels)
• 32 internal banks
• Hard/Soft Post Package Repair
• Sideband access with I3C/I2C
• PCB: Height 1.23" (31.25mm)
• RoHS Compliant and Halogen-Free

• Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
• Up to 5600 MHz speed with registered signal for playing the latest games and using heavy software
• 48 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
• The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
• 288-pin for faster, dependable performance and better access to data and information
• CL46 CAS latency for faster, dependable clock cycles which allows quick access and retrieval of data and information
• Server device support for your RAM Module to allow enhanced system performance and reliable memory solution
• DIMM form factor with 288-pin and 48 GB memory size effectively reduces minimizes the load on the server memory BUS to ensure maximum productivity
• Registered signal processing allows high speed and accuracy to allow maximum reliability
