Chief TILD1X3IERF Wall Mount for Digital Signage Display, LED Display, Video Wall, Display Screen, Monitor — TILD1X3IERF

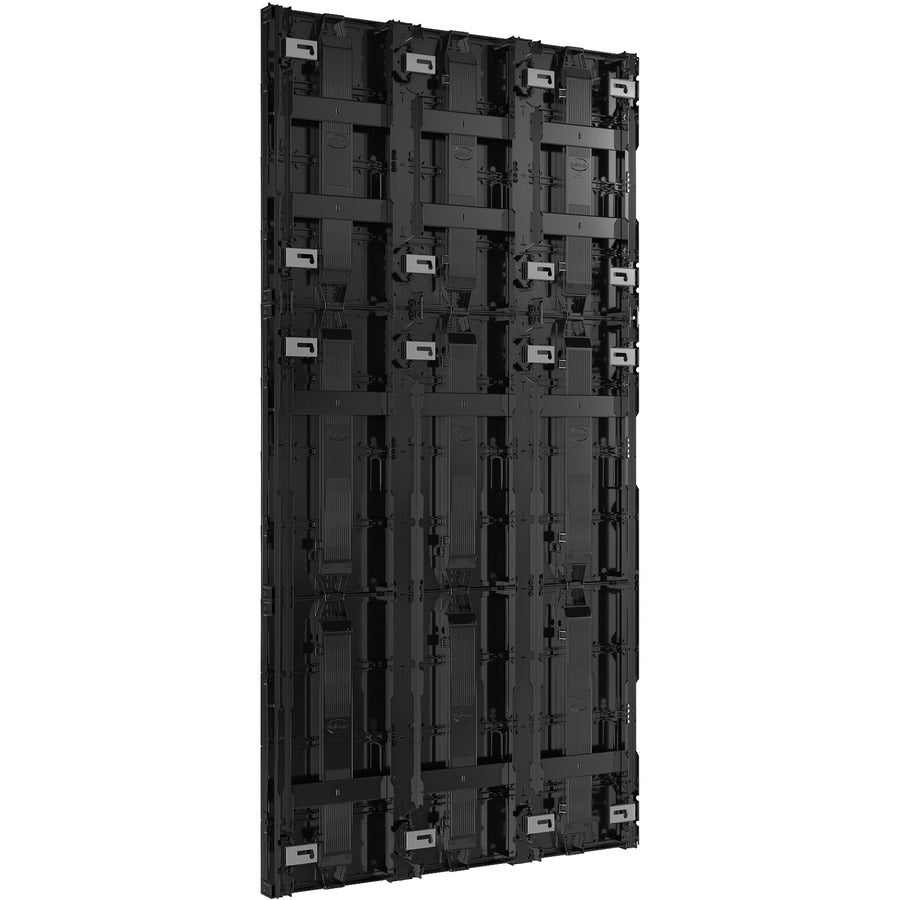

The modular system contains left, middle, and right structural components that can be ordered in 2 high and 3 high lengths to support the Samsung IER-F Series. The Samsung IER-F Series displays are a quarter of the size of the original displays and provide more flexibility in design. Mix and match a variety of components to create endless video wall configurations. Essential X,Y, and Z-axis adjustments allow perfect positioning and alignment for a flawless video wall.

TiLED direct view LED mounting solutions are in stock and ready to ship with no custom lead times or project registration required. Easy to specify, order, and install. Turn your creative vision into a reality.

Compatible with:

• IER015R
• IER020R
• IER025R
• IER040R

• IE015R-F
• IE020R-F
• IE025R-F
• IE040R-F

• IF015R
• IF025R

• IF015R-F
• IF025R-F

• IF015R-E
• IF020R-E
• IF025R-E
• IF040R-E

• IF015R-EF
• IF020R-EF
• IF025R-EF
• IF040R-EF

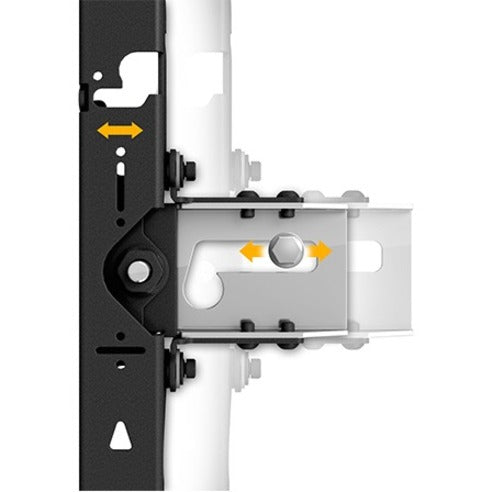

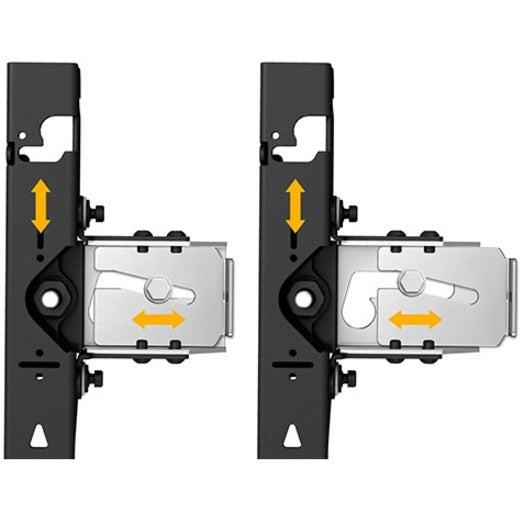

• X-axis lateral shift adjustments enable perfect LED positioning
• Y-axis vertical shift adjustments provide perfect cabinet-to-cabinet alignment

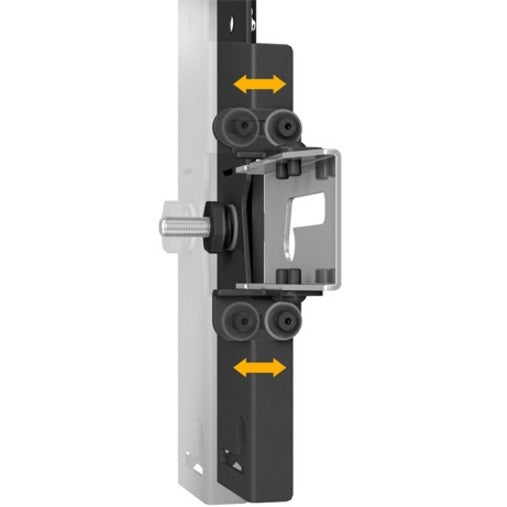

• Z-axis plumb adjustments compensate for wall imperfections to achieve perfectly flat mounting surfaces

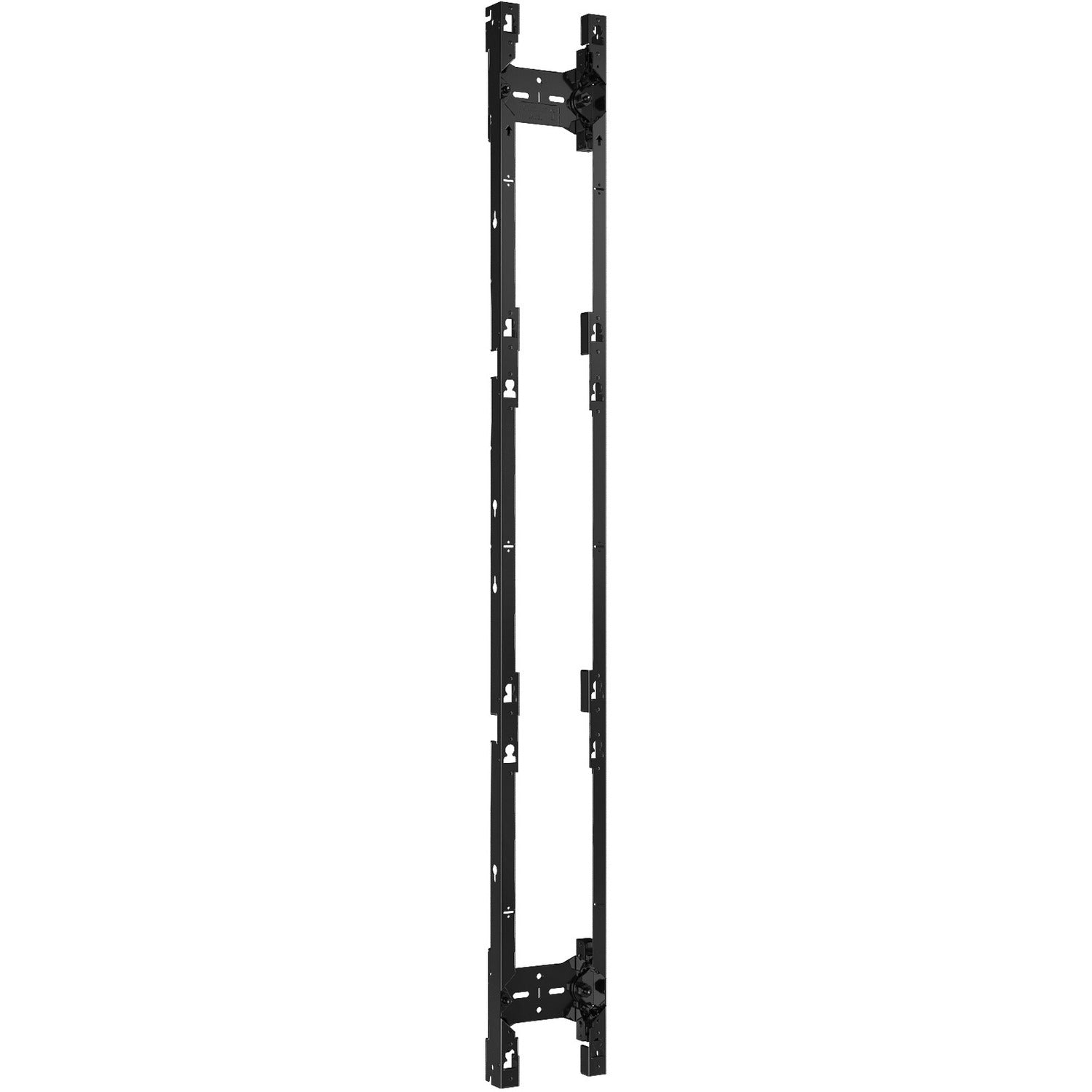

• The modular system contains left, middle, and right wall mounting components that can be ordered in heights supporting 2 and 3 displays tall
• Wall mounting structure, vertical connectors, and side covers sold separately
• Offset mounting slots for easy installation and protect LED sides from damaging friction
• Depth range with display is between 5.37" - 6.12" (136-156 mm)
• Standard, off-the-shelf solution set means product is stockable and ready to ship - no custom lead times
